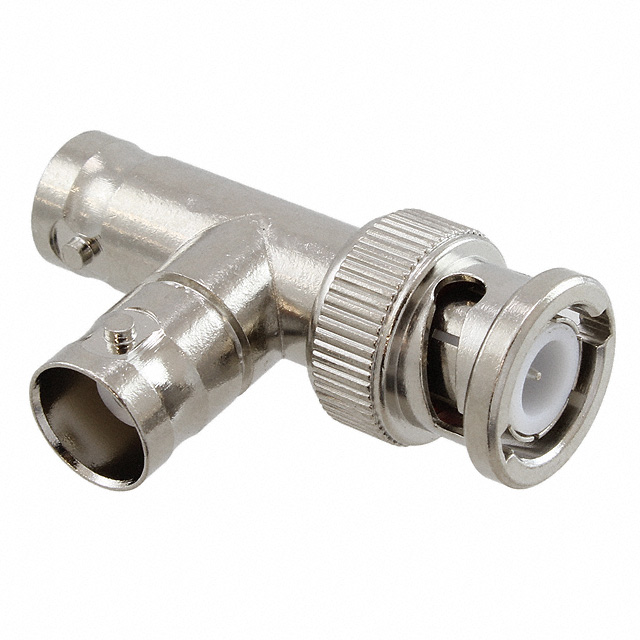

000-21900

Active

AMPHENOL RF

CONN ADAPT PLUG TO JACK BNC

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN ADAPT PLUG TO JACK BNC

Technical Specifications

Parameters and characteristics for this part

Specification	000-21900

Adapter Series	BNC to BNC, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

CONN ADAPT PLUG TO JACK BNC

Part	Impedance	Mating Cycles	Convert To (Adapter End)	Fastening Type	Body Finish	Mounting Type	Center Contact Material	Convert From (Adapter End)	Dielectric Material	Conversion Type	Adapter Type	Body Material	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Style	Adapter Series
AMPHENOL RF 000-21900	50 Ohms	500	BNC Jack, Female Socket (2)	Bayonet Lock	Nickel	Free Hanging (In-Line)	Beryllium Copper	BNC Plug, Male Pin	Polytetrafluoroethylene (PTFE)	Same Series	Plug to Jack	Brass	Silver	4 GHz	-65 ░C	165 °C	T-Shape	BNC to BNC, Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 82.81

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms
