Description
General part information

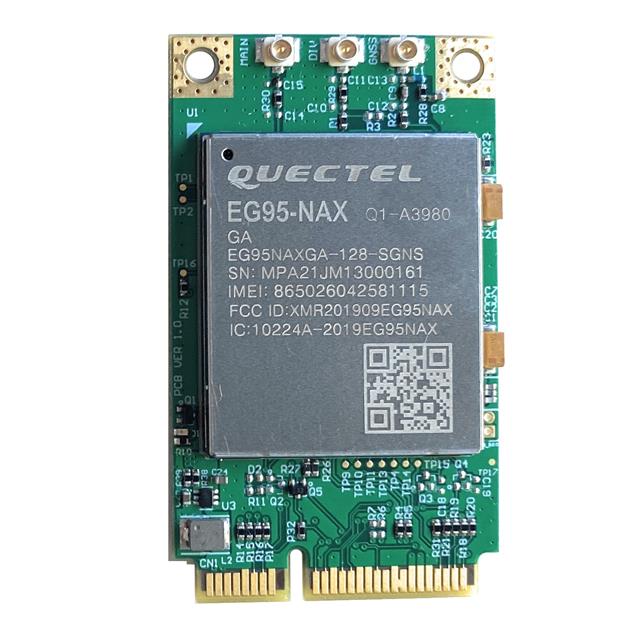

EG95NAXMPCIER10
Cellular, Navigation BeiDou, Galileo, GLONASS, GNSS, GPS, HSDPA, HSPA+, HSUPA, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge
Technical Specifications
Parameters and characteristics for this part
| Specification | EG95NAXMPCIER10 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 150 MHz |
| Mounting Type | Card Edge |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Protocol | Galileo, LTE, BeiDou, HSUPA, GPS, WCDMA, HSDPA, HSPA+, GLONASS, GNSS, UMTS |
| RF Family/Standard | Navigation, Cellular |
| Serial Interfaces | USB, UART, I2C, PCM |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
