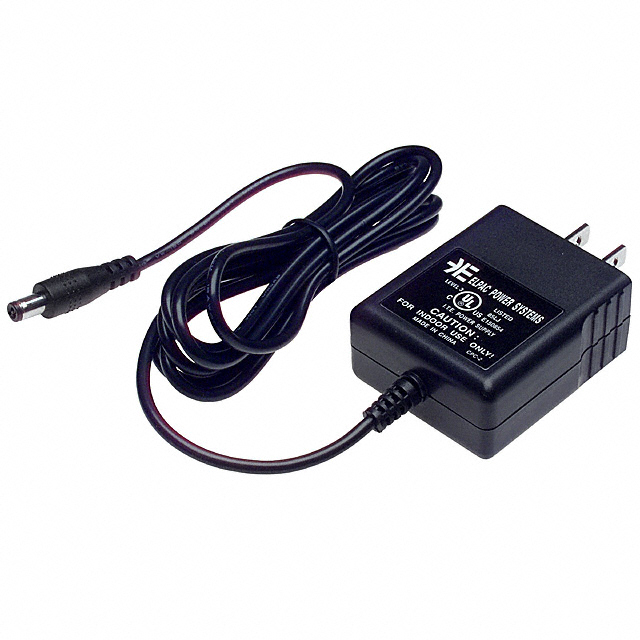

WP1112-760
ObsoleteInventus Power
AC/DC WALL MNT ADAPTER 12V 9.6W
WP1112-760
ObsoleteInventus Power
AC/DC WALL MNT ADAPTER 12V 9.6W
Description
General part information
WP1112-760
12V 9.6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | WP1112-760 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 800 mA |
| Efficiency | 75 % |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.5 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 9.6 W |
| Region Utilized | North America |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 12 V |
