6038810
ActiveSICK, Inc.

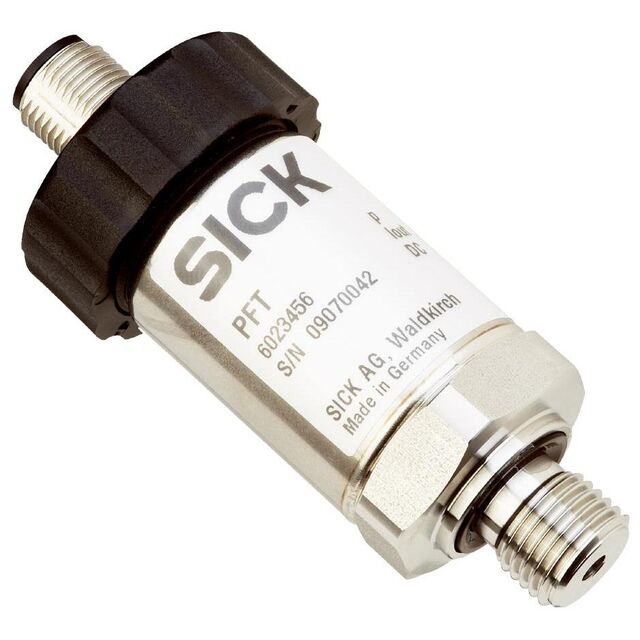

PRESSURE TRANSMITTER
6038810
ActiveSICK, Inc.
PRESSURE TRANSMITTER
Description
General part information
6038810
PRESSURE TRANSMITTER
Technical Specifications
Parameters and characteristics for this part
| Specification | 6038810 |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Industrial Automation |
| Operating Pressure | 36.26 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.5 in |
| Port Feature | G |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
