FMCA1427-6
ActiveFairview Microwave
CBL ASSY MMBXPLUG-SMAPLUG 6
FMCA1427-6
ActiveFairview Microwave
CBL ASSY MMBXPLUG-SMAPLUG 6
Description
General part information
FMCA1427-6

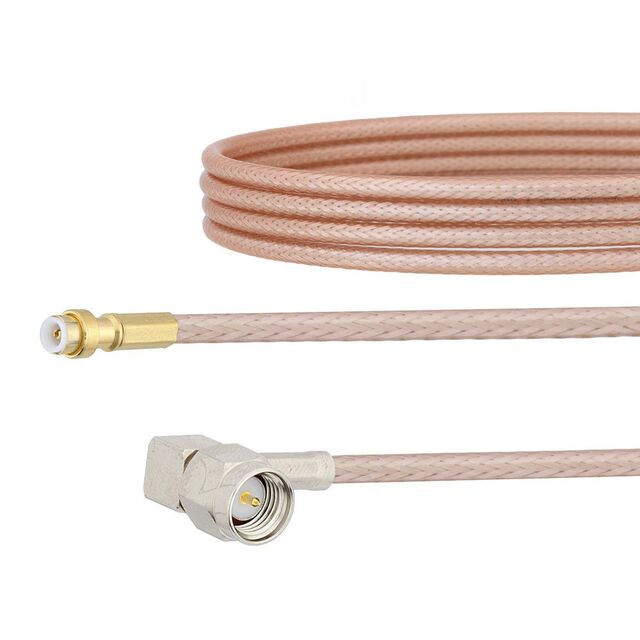

Cable Assembly Coaxial SMA to MMBX RG-316 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1427-6 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMBX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | MMBX, SMA |
