2HX-500-2-YL-S
ActiveBRADY
SLEEVE, 0.5 IN DIA X 2 IN W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2HX-500-2-YL-S
ActiveBRADY
SLEEVE, 0.5 IN DIA X 2 IN W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2HX-500-2-YL-S | 2HX-500 Series |
|---|---|---|
| Color | Yellow | White, Yellow |
| Label Size | - | 0.85 - 21.6 in |
| Label Size | - | 0.25 - 6.4 in |
| Label Size | - | 0.45 - 11.4 in |
| Label Size | - | 0.5 " |
| Label Size | - | 6.4 mm |
| Label Size | - | 11.4 mm |
| Label Size | - | 0.67 - 1 in |
| Label Size | - | 0.25 in |
| Label Size | - | 6.4 - 17 mm |
| Label Size | - | 0.45 " |
| Label Size [diameter] | 12.7 mm | 0.25 - 12.7 mm |
| Label Size [Max] | 11.4 mm, 0.45 " | 0.45 - 11.4 mm |
| Label Size [Min] | 6.4 mm, 0.25 " | 0.25 - 6.4 mm |
| Label Size [x] | 50.8 mm | 12.7 - 50.8 mm |
| Label Type | Heat Shrinkable | Heat Shrinkable |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 120 °C | 120 - 135 °C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
2HX-500 Series
SLEEVE, 0.5 IN DIA X 2.3 IN W
| Part | Label Type | Operating Temperature [Max] | Operating Temperature [Min] | Material | Label Size [y] | Label Size [Min] [diameter] | Label Size [Max] [diameter] | Label Size [x] | Color | Label Size [Min] | Label Size [diameter] | Label Size [Max] | Label Size [diameter] | Label Size [diameter] | Label Size [Max] [diameter] | Label Size [x] | Label Size [Min] | Label Size | Label Size [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 2HX-500-2.3-WT | Heat Shrinkable | 135 °C | -55 °C | Polyolefin (PO) | 0.85 in, 21.6 mm | 0.25 in, 6.4 mm | 0.45 in, 11.4 mm | 50.8 mm | White | ||||||||||
BRADY 2HX-500-2-YL | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | 50.8 mm | Yellow | 0.25 ", 6.4 mm | 12.7 mm | 0.45 ", 11.4 mm | ||||||||||
BRADY 2HX-500-2.3-WT-2 | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | White | ||||||||||||||
BRADY 2HX-500-2-YL-J-4 | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | 12.7 mm | Yellow | 0.25 " | 12.7 mm | 0.45 " | ||||||||||
BRADY 2HX-500-2.3-YL-2 | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | Yellow | ||||||||||||||
BRADY 2HX-500-2.3-YL | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | 0.85 in, 21.6 mm | 0.25 in, 6.4 mm | 0.45 in, 11.4 mm | 50.8 mm | Yellow | ||||||||||
BRADY 2HX-500-2-YL-2 | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | 0.45 in | 25.4 mm | Yellow | 0.25 in, 12.7 mm | 0.5 " | 6.4 mm | 11.4 mm | 1 in | |||||||
BRADY 2HX-500-2-YL-J-2 | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | 0.45 in | 25.4 mm | Yellow | 0.25 in, 12.7 mm | 0.5 " | 6.4 mm | 11.4 mm | 1 in | |||||||
BRADY 2HX-500-2-YL-3 | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | Yellow | 0.5 " | 0.67 in | 0.25 in | 6.4 mm, 11.4 mm, 12.7 mm, 17 mm | 0.45 " | |||||||||
BRADY 2HX-500-2-YL-S | Heat Shrinkable | 120 °C | -40 °C | Polyolefin (PO) | 50.8 mm | Yellow | 0.25 ", 6.4 mm | 12.7 mm | 0.45 ", 11.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 568.16 | |
Description
General part information
2HX-500 Series

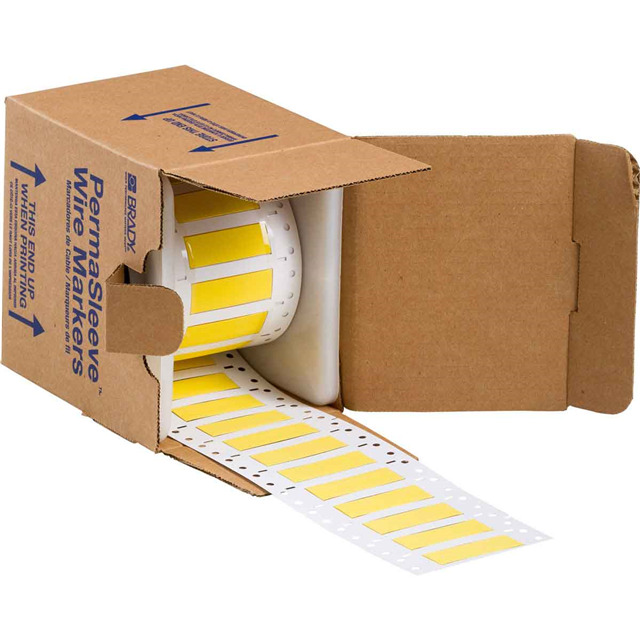

Yellow Heat Shrinkable Label 2.00" W x 0.50" Dia (50.8mm x 12.7mm); Cable O.D. 0.25" ~ 0.45" (6.4mm ~ 11.4mm)
