PC47EER25.5-Z
ActiveTDK Corporation
FERRITE COR EER 1.92UH PCS47 2PC
PC47EER25.5-Z
ActiveTDK Corporation
FERRITE COR EER 1.92UH PCS47 2PC
Description
General part information
PC47EER25.5-Z

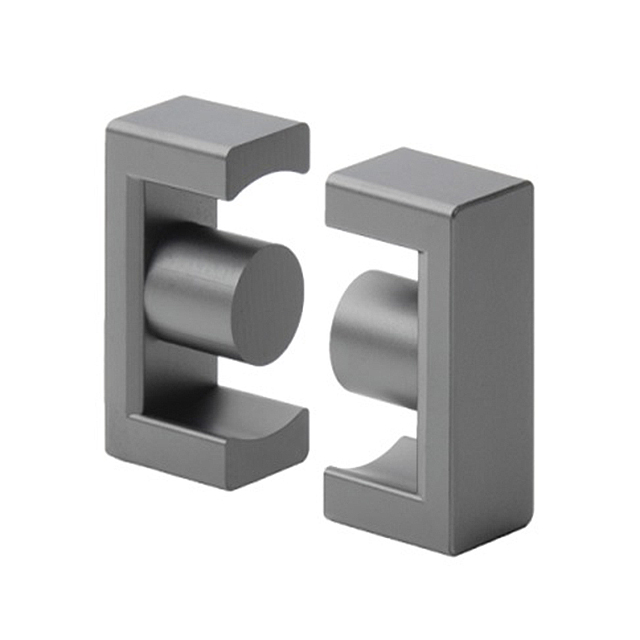

Uncoated PC47 Ferrite Core EER Type 1.004" (25.50mm) Length 0.295" (7.50mm) Width Diameter 0.366" (9.30mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | PC47EER25.5-Z |
|---|---|
| Core Factor (ΣI/A) | 1.08 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1.08 mm⁻¹ |
| Core Type | EER |
| Effective Area (Ae) | 44.8 mm² |
| Effective Length (le) | 48.2 mm |
| Effective Magnetic Volume (Ve) | 2160 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.366 in |
| Inductance Factor (Al) | 1.92 µH |
| Length | 1.004 in |
| Material | PC47 |
| Package Name | EER 25.5 |
| Tolerance | 25 % |
| Width | 0.295 in |
