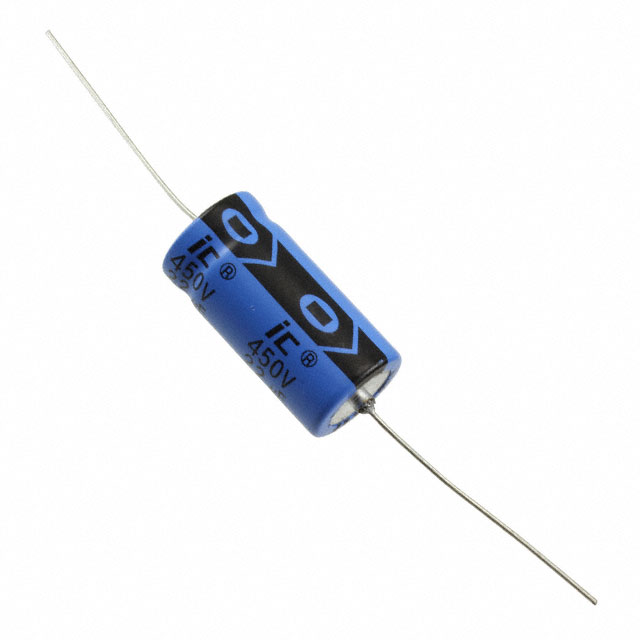

Specification	226TTA450M

Applications	General Purpose
Capacitance	22 µF
ESR (Equivalent Series Resistance)	18.839 Ohm
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current	160 mA, 244.8 mA
Size / Dimension Diameter	0.63 in
Size / Dimension Length	1.22 in
Tolerance	20 %
Voltage - Rated	450 V
