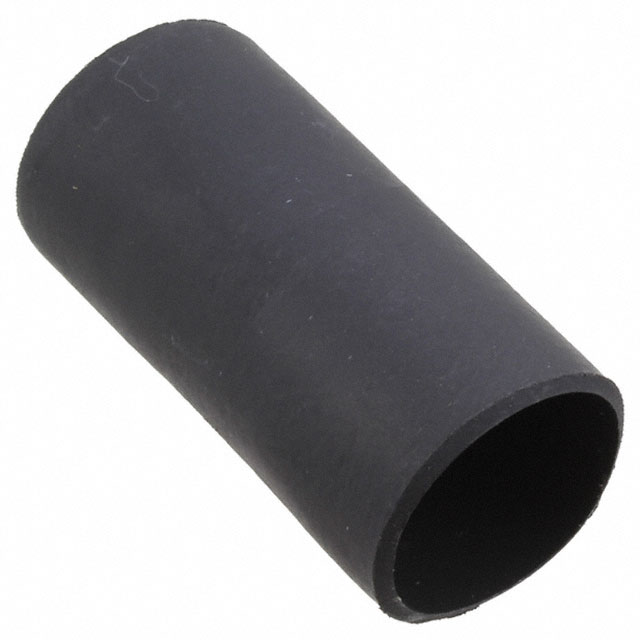

RT-3-NO.2-0-COIL

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.319" X 1500' BLACK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.319" X 1500' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RT-3-NO.2-0-COIL

Color	Black
Features	Flame Retardant, Strain Resistant, Abrasion Resistant, Solvent Resistant, Chemical Resistant
Inner Diameter - Recovered	3.18 mm
Inner Diameter - Recovered [diameter]	0.125 in
Inner Diameter - Supplied [diameter]	8.1 mm
Inner Diameter - Supplied [diameter]	0.319 in
Length	50.8 mm, 76.2 mm, 19.05 mm, 152.4 mm, 25.4 mm, 457.2 m
Length	2 ", 3 ", 0.75 ", 6 ", 1 in
Length	0.167 ', 0.25 ft, 0.062 ', 0.083 ft, 1500 '
Length	0.5 '
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.031 "
Recovered Wall Thickness	0.79 mm
Shelf Life	144 Months
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	2.5
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

Part	Color	Storage/Refrigeration Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Length	Length	Length	Shrink Temperature	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Length	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Inner Diameter - Recovered [diameter]
TE Connectivity Raychem Cable Protection RT-3-NO.2-0-COIL	Black	35 °C	8.1 mm	0.319 in	Polyolefin (PO) Irradiated	19.05 mm 25.4 mm 50.8 mm 76.2 mm 152.4 mm 457.2 m	0.75 " 1 in 2 " 3 " 6 "	0.062 ' 0.083 ft 0.167 ' 0.25 ft 1500 '	110 °C	144 Months	0.125 in	3.18 mm	0.031 "	0.79 mm	2.5	1	0.5 '	135 °C	-55 °C	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	Tubing Semi Rigid
TE Connectivity Raychem Cable Protection RT-3-NO.4-0-SP	Black	35 °C	12.29 mm	0.484 in	Polyolefin (PO) Irradiated				110 °C	144 Months	0.2 in		0.031 "	0.79 mm	2.5	1		135 °C	-55 °C	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	Tubing Semi Rigid	5.08 mm
TE Connectivity Raychem Cable Protection RT-3-NO.1-0-SP	Black	35 °C	6.1 mm	0.24 in	Polyolefin (PO) Irradiated				110 °C	144 Months	0.095 in		0.031 "	0.79 mm	2.5	1		135 °C	-55 °C	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	Tubing Semi Rigid	2.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Semi Rigid 0.319" (8.10mm) 2.5 to 1 Black 1500.0' (457.2m)
