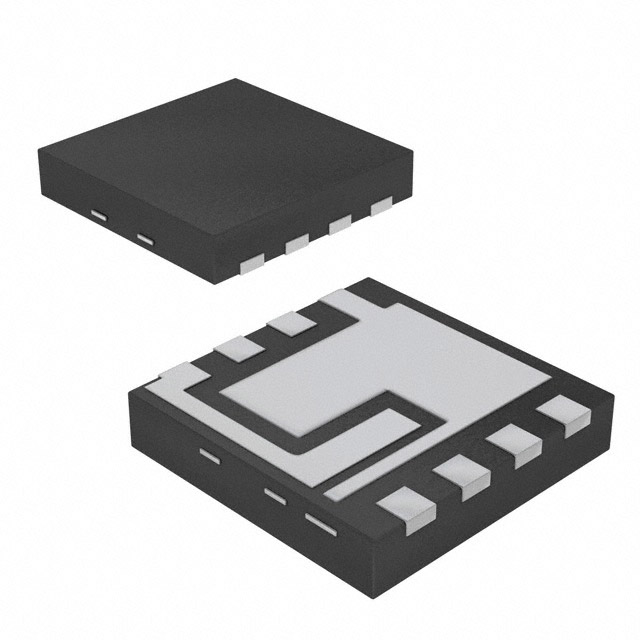

DLD101-7 - DFN3030D-8

DLD101-7

Active
Diodes Inc

LINEAR MODE CURRENT SINK LED DRIVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+2
DLD101-7 - DFN3030D-8

DLD101-7

Active
Diodes Inc

LINEAR MODE CURRENT SINK LED DRIVER

Deep-Dive with AI

DocumentsDatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationDLD101-7
ApplicationsBacklight, Signage
Current - Output / Channel [custom]1 A
DimmingPWM
GradeAutomotive
Internal Switch(s)True
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / Case8-PowerUDFN
QualificationAEC-Q101
Supplier Device PackageDFN3030D-8
TypeLinear
Voltage - Supply (Max) [Max]50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.65
10$ 0.56
25$ 0.52
100$ 0.42
250$ 0.39
500$ 0.33
1000$ 0.25
Digi-Reel® 1$ 0.65
10$ 0.56
25$ 0.52
100$ 0.42
250$ 0.39
500$ 0.33
1000$ 0.25
Tape & Reel (TR) 3000$ 0.18

Description

General part information

DLD101 Series

Linear Mode Current Sink LED Driver
