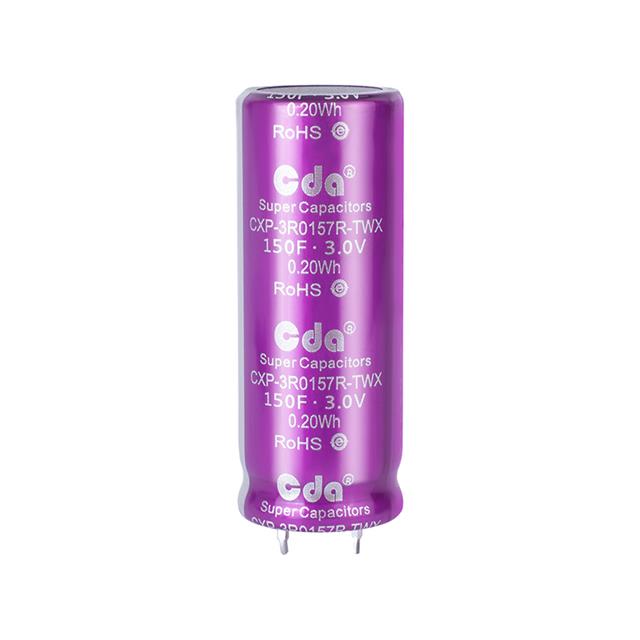

CXP-3R0157R-TWX
ActiveCDA (Zhifengwei Technology)
3.0V 150F 22*55 T/S1 EDLC
CXP-3R0157R-TWX
ActiveCDA (Zhifengwei Technology)
3.0V 150F 22*55 T/S1 EDLC
Description
General part information
CXP-3R0157R-TWX
150 F (EDLC) Supercapacitor 3 V Radial, Can - Snap-In 7Ohm @ 1kHz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CXP-3R0157R-TWX |
|---|---|
| Capacitance | 150 F |
| ESR (Equivalent Series Resistance) | 7 Ohm |
| Height - Seated (Max) | 2.244 in |
| Lead Spacing | 0.394 in |
| Lifetime | 1000 Hrs, 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Size / Dimension Diameter | 0.866 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 3 VDC |
