EN3C5FCX
ActiveSwitchcraft Inc.

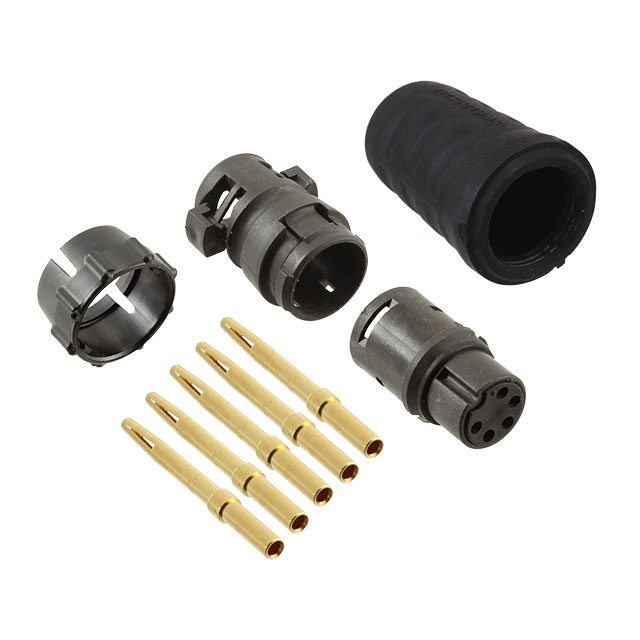

CONN PLUG FMALE 5POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3C5FCX | EN3C5F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.38 in |
| Cable Opening | - | 9.65 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3C5F Series
CONN PLUG FMALE 5POS GOLD CRIMP
| Part | Contact Material | Shielding | Current Rating (Amps) | Voltage Rating | Mounting Type | Features | Material Flammability Rating | Connector Type | Orientation | Ingress Protection | Color | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Insert Material | Applications | Fastening Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Termination | Primary Material | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3C5FCLX | Copper Alloy | Unshielded | 7.5 A | 250 VAC | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | UL94 V-0 | Female Sockets, Plug | Keyed | IP66/IP68 | Black | Thermoplastic | 65 °C | -40 °C | Gold | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | 5.84 mm | 0.38 in | 9.65 mm | 0.23 in | Crimp | Plastic | ||
Switchcraft Inc. EN3C5FCX | Copper Alloy | Unshielded | 7.5 A | 250 VAC | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | UL94 V-0 | Female Sockets, Plug | Keyed | IP66/IP68 | Black | Thermoplastic | 65 °C | -40 °C | Gold | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Crimp | Plastic | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | ||||
Switchcraft Inc. EN3C5FKX | Copper Alloy | Unshielded | 7.5 A | 250 VAC | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | UL94 V-0 | Female Sockets, Plug | Keyed | IP66/IP68 | Black | Thermoplastic | 65 °C | -40 °C | Gold | Elastomer | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Plastic | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.37 | |
Description
General part information
EN3C5F Series
5 Position Circular Connector Plug, Female Sockets Crimp
