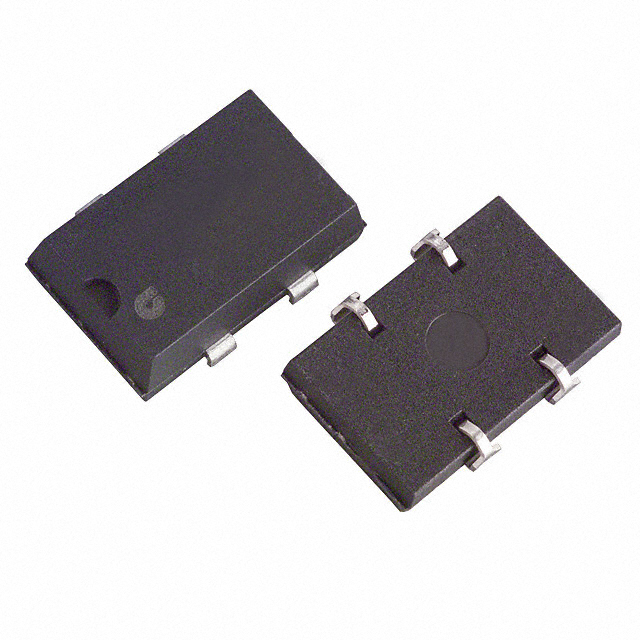

CMX309FLC18.432M-UT
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC XO 18.4320MHZ CMOS TTL
CMX309FLC18.432M-UT
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC XO 18.4320MHZ CMOS TTL
Description
General part information
CMX309FLC18.432M-UT
18.432 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | CMX309FLC18.432M-UT |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 12 mA |
| Current - Supply (Max) | 23 mA |
| Frequency | 18.432 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.185 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output | CMOS, TTL |
| Package / Case | 5.08mm pitch, 4-SOJ |
| Package Pitch | 0.2 in |
| Size / Dimension Length | 0.547 in |
| Size / Dimension Width | 0.341 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
