9202471R0696
ActiveEase Electronics
COAX CABLE SMB TO SMB 6"
9202471R0696
ActiveEase Electronics
COAX CABLE SMB TO SMB 6"
Description
General part information
9202471R0696

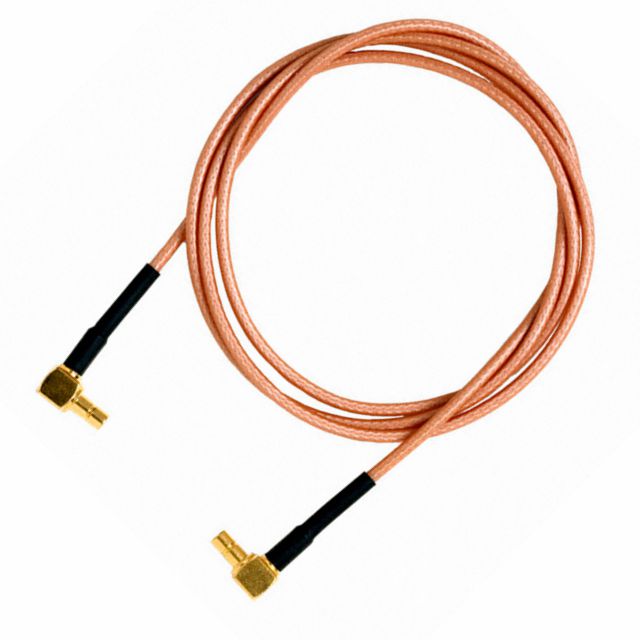

Cable Assembly Coaxial SMB to SMB RG-316 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 9202471R0696 |
|---|---|
| 1st Connector | SMB Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max | 3 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMB |
