A7OXB-1506M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFN15B/AE15M/X
Deep-Dive with AI
Search across all available documentation for this part.
A7OXB-1506M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFN15B/AE15M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7OXB-1506M | A7OXB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 15 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB15 | DB9, DB15, DB37, DB25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.80 | |
| 10 | $ 21.38 | |||
| 25 | $ 19.85 | |||
| 50 | $ 18.76 | |||
| 100 | $ 17.74 | |||
| 250 | $ 16.47 | |||
| 500 | $ 15.69 | |||
A7OXB Series
CABLE D-SUB - AFN09B/AE09M/X
| Part | Color | Length | Length | Type | 1st Connector | Contact Finish | 2nd Connector | Shielding | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7OXB-0910M | Multiple, Ribbon | 10 ft | 3.05 m | DB9 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 9 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7OXB-1510G | 10 ft | 3.05 m | DB15 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 15 | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7OXB-3706M | Multiple, Ribbon | 6 ft | 1.83 m | DB37 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 37 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7OXB-2506M | Multiple, Ribbon | 6 ft | 1.83 m | DB25 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7OXB-3710M | Multiple, Ribbon | 10 ft | 3.05 m | DB37 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 37 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7OXB-1506G | 6 ft | 1.83 m | DB15 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 15 | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7OXB-2506G | 6 ft | 1.83 m | DB25 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7OXB-1506M | Multiple, Ribbon | 6 ft | 1.83 m | DB15 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 15 | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors A7OXB-3706G | 6 ft | 1.83 m | DB37 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 37 | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7OXB-3710G | 10 ft | 3.05 m | DB37 | Female Sockets, Receptacle | Gold | Individual Wire Leads | Unshielded | 37 | 0.76 Ám | 30 Áin |
Description
General part information
A7OXB Series

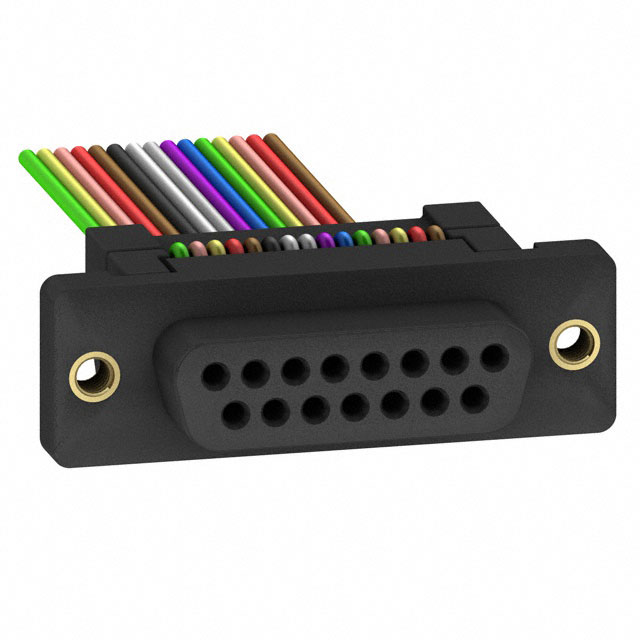

D-Sub Cable Assembly DB15 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
