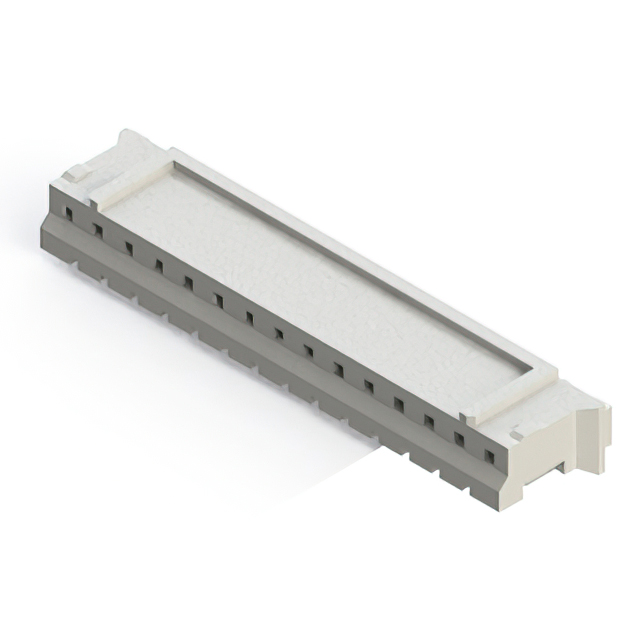

CONNECTOR HOUSING, 140 SERIES, RECEPTACLE, 15 POSITIONS, 2 MM
Deep-Dive with AI
Search across all available documentation for this part.
140-515-210-011
ActiveEDAC Inc.
CONNECTOR HOUSING, 140 SERIES, RECEPTACLE, 15 POSITIONS, 2 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 140-515-210-011 | 140-515 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle, Header |
| Contact Finish - Post | - | Tin |
| Contact Material | - | Brass |
| Contact Shape | - | Square |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket, Male Pin |
| Current Rating (Amps) | - | 2 A |
| Fastening Type | Detent Lock | Detent Lock |
| Features | Polarizing Key | Polarizing Key, Solder Retention |
| Insulation Color | - | Natural |
| Insulation Height | - | 5.51 mm |
| Insulation Height | - | 0.217 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Surface Mount, Surface Mount, Right Angle |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 15 | 15 |
| Number of Positions Loaded | - | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 - 105 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Pitch - Mating | - | 0.079 in |
| Pitch - Mating | - | 2 mm |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Shrouding | - | Shrouded - 4 Wall |
| Style | - | Board to Cable/Wire |
| Termination | - | Solder |
| Voltage Rating | - | 100 VAC |
140-515 Series
CONNECTOR HOUSING, 140 SERIES, RECEPTACLE, 15 POSITIONS, 2 MM
| Part | Contact Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Fastening Type | Mounting Type | Number of Positions | Note | Insulation Material | Pitch [x] | Pitch [x] | Features | Connector Type | Number of Rows | Current Rating (Amps) | Shrouding | Material Flammability Rating | Number of Positions Loaded | Insulation Color | Termination | Voltage Rating | Contact Shape | Style | Contact Finish - Post | Insulation Height [custom] | Insulation Height [custom] | Contact Material | Pitch - Mating [x] | Pitch - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. 140-515-210-011 | Female Socket | Natural | -25 °C | 85 °C | Crimp | Detent Lock | Free Hanging (In-Line) | 15 | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 0.079 in | 2 mm | Polarizing Key | Receptacle | 1 | |||||||||||||||
EDAC Inc. 140-515-417-011 | Male Pin | -40 °C | 105 ░C | Detent Lock | Surface Mount | 15 | Liquid Crystal Polymer (LCP) | Solder Retention | Header | 1 | 2 A | Shrouded - 4 Wall | UL94 V-0 | All | Natural | Solder | 100 VAC | Square | Board to Cable/Wire | Tin | 5.51 mm | 0.217 in | Brass | 0.079 in | 2 mm | |||||
EDAC Inc. 140-515-417-060 | Male Pin | -25 °C | 85 °C | Detent Lock | Surface Mount, Right Angle | 15 | Nylon 9T, Polyamide (PA9T) | Solder Retention | Header | 1 | 2 A | Shrouded - 4 Wall | UL94 V-0 | All | Natural | Solder | 100 VAC | Square | Board to Cable/Wire | Tin | 5.51 mm | 0.217 in | Brass | 0.079 in | 2 mm |
