7-342-2PP-BA

Active

CTS Thermal Management Products

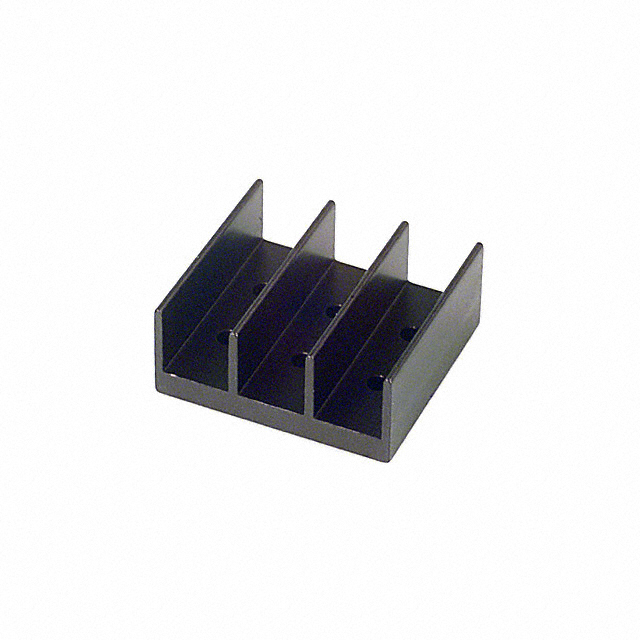

HEATSINK HORZ SIX BLACK TO-220

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK HORZ SIX BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-342-2PP-BA

Attachment Method	Bolt On
Fin Height	17.53 mm
Fin Height	0.69 in
Length	1.5 "
Length	38.1 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	40 °C, 9 W
Shape	Rectangular, Fins
Thermal Resistance @ Natural	5 °C/W
Type	Board Level
Width [y]	1.642 in
Width [y]	41.7 mm

HEATSINK HORZ SIX BLACK TO-220

Part	Width [y]	Width [y]	Length	Length	Power Dissipation @ Temperature Rise	Material Finish	Material	Attachment Method	Thermal Resistance @ Natural	Shape	Package Cooled	Type	Fin Height	Fin Height
CTS Thermal Management Products 7-342-2PP-BA	1.642 in	41.7 mm	1.5 "	38.1 mm	9 W, 40 °C	Black Anodized	Aluminum	Bolt On	5 °C/W	Rectangular, Fins	TO-220	Board Level	17.53 mm	0.69 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 9.0W @ 40°C Board Level
