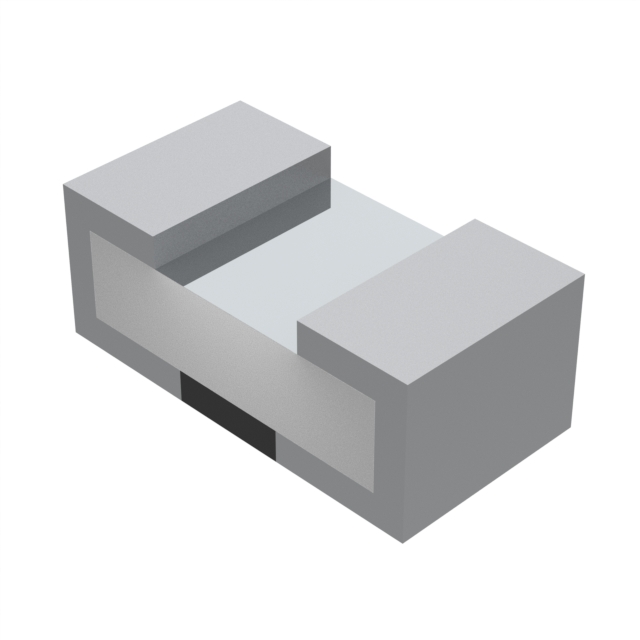

UCR006YVPFLR750
ActiveRohm Semiconductor
THICK FILM LOW OHMIC CHIP RESIST
UCR006YVPFLR750
ActiveRohm Semiconductor
THICK FILM LOW OHMIC CHIP RESIST
Description
General part information
UCR006YVPFLR750
750 mOhms ±1% 0.1W, 1/10W Chip Resistor 0201 (0603 Metric) Automotive AEC-Q200, Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | UCR006YVPFLR750 |
|---|---|
| Composition | Thick Film |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.011 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 |
| Power (Watts) | 100 mW |
| Power (Watts) Options | 1/10W |
| Ratings | AEC-Q200 |
| Resistance | 750 mOhms |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.013 in |
| Temperature Coefficient (Highest) | 300 ppm/°C |
| Temperature Coefficient (Lowest) | 0 ppm/°C |
| Tolerance | 1 % |
