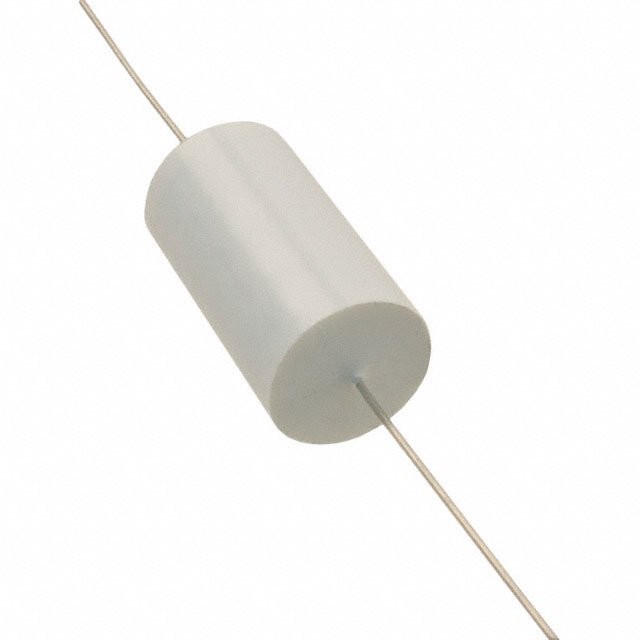

Specification	942C16S68K

Applications	High Pulse, DV/DT
Capacitance	0.068 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6 mOhm
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Size / Dimension Diameter	0.748 in
Size / Dimension Length	1.339 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	460 V
Voltage Rating - DC	1600 V
