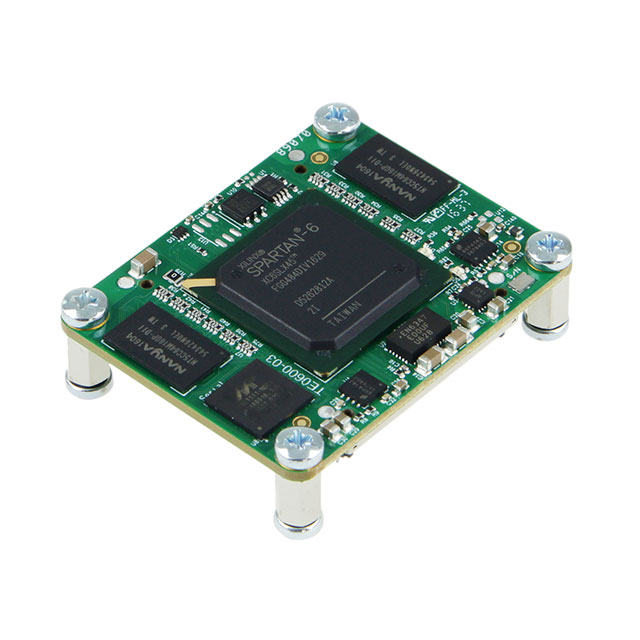

TE0600-03IMVF

Obsolete

Trenz Electronic

IC MODULE LX150 125MHZ 1GB 16MB

Search across all available documentation for this part.

Obsolete

Trenz Electronic

IC MODULE LX150 125MHZ 1GB 16MB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0600 Embedded Module Spartan-6 LX-150 125MHz 1GB 16MB

Technical documentation and resources

No documents available

Specification	TE0600-03IMVF	TE0600 Series

Connector Type	Samtec LSHM	Samtec LSHM
Core Processor	Spartan-6 LX-150	Spartan-6 LX-100, Spartan-6 LX-45, Spartan-6 LX-150
Flash Size	16 MB	16 MB
Module/Board Type	FPGA Core	FPGA Core
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
RAM Size	1 GB	1 - 256 GB
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [x]	1.97 "	1.97 "
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [y]	1.57 "	1.57 "
Speed	125 MHz	125 MHz

Part	Speed	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Flash Size	Core Processor	Module/Board Type	RAM Size	Connector Type
Trenz Electronic TE0600-03BM	125 MHz	50 mm	1.97 "	40 mm	1.57 "	70 °C	0 °C	16 MB	Spartan-6 LX-100	FPGA Core	1 GB	Samtec LSHM
Trenz Electronic TE0600-03IN	125 MHz	50 mm	1.97 "	40 mm	1.57 "	85 °C	-40 °C	16 MB	Spartan-6 LX-45	FPGA Core	256 MB	Samtec LSHM
Trenz Electronic TE0600-03IMVF	125 MHz	50 mm	1.97 "	40 mm	1.57 "	85 °C	-40 °C	16 MB	Spartan-6 LX-150	FPGA Core	1 GB	Samtec LSHM
Trenz Electronic TE0600-03IVFN	125 MHz	50 mm	1.97 "	40 mm	1.57 "	85 °C	-40 °C	16 MB	Spartan-6 LX-150	FPGA Core	256 MB	Samtec LSHM
