BAV70LP-7
ActiveDiodes Inc

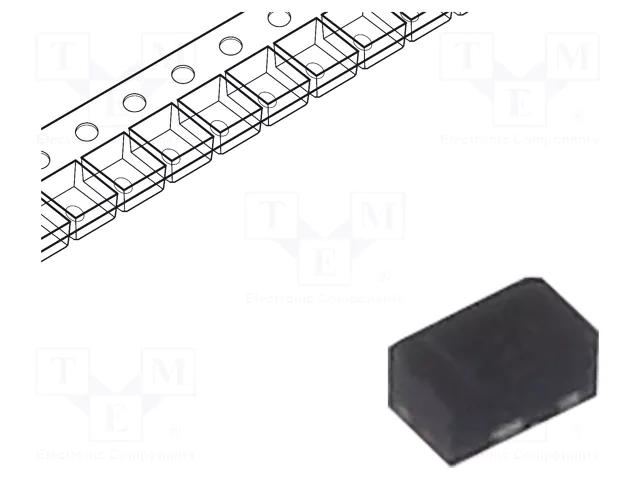

DIODE: SWITCHING; SMD; 75V; 0.15A; 4NS; X1-DFN1006-3; UFMAX: 1.25V
Deep-Dive with AI
Search across all available documentation for this part.
BAV70LP-7
ActiveDiodes Inc
DIODE: SWITCHING; SMD; 75V; 0.15A; 4NS; X1-DFN1006-3; UFMAX: 1.25V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BAV70LP-7 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 150 mA |
| Current - Reverse Leakage @ Vr | 2.5 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | 3-UFDFN |
| Reverse Recovery Time (trr) | 4 ns |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | X1-DFN1006-3 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 75 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.25 V |
