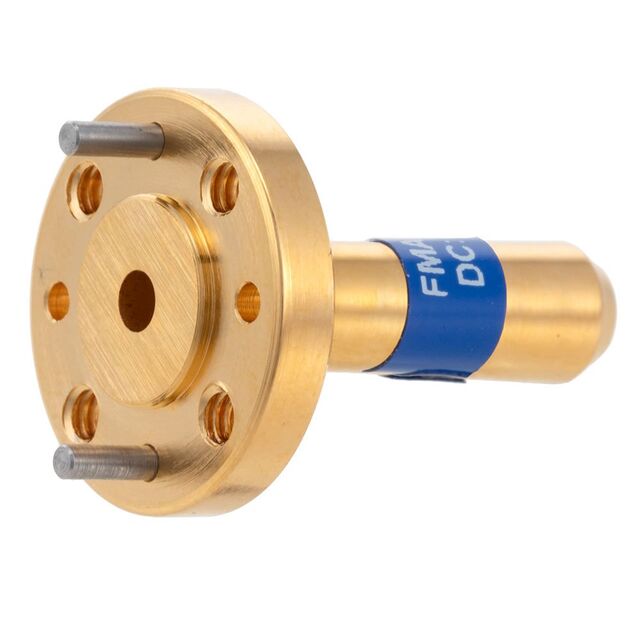

FMWAN1045
ObsoleteFairview Microwave
WG ANTENNA WR-12 77-87 GHZ
FMWAN1045
ObsoleteFairview Microwave
WG ANTENNA WR-12 77-87 GHZ
Description
General part information
FMWAN1045
RF ANTENNA General Purpose Horn Screw-Mount Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN1045 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 82 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 87 GHz |
| Frequency Range (Min) | 77 GHz |
| Gain | 10 dBi |
| Height (Max) | 0.262 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Screw-Mount |
| VSWR | 1.15 |
