CBH3R6474HF-ZJ
ActiveCDA (Zhifengwei Technology)
CAP 0.47F -20% +80% 3.6V T/H
CBH3R6474HF-ZJ
ActiveCDA (Zhifengwei Technology)
CAP 0.47F -20% +80% 3.6V T/H
Description
General part information
CBH3R6474HF-ZJ

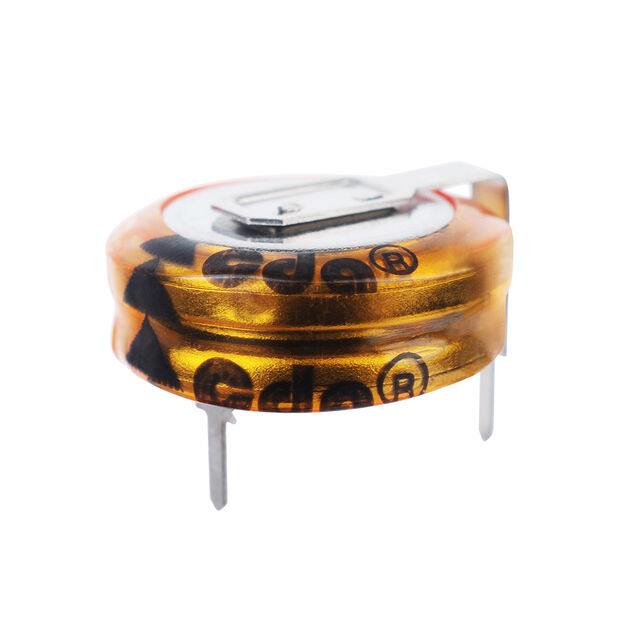

470 mF (EDLC) Supercapacitor 3.6 V Axial, Can - Horizontal 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CBH3R6474HF-ZJ |
|---|---|
| Capacitance | 0.47 F, 470 mF |
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Height - Seated (Max) | 0.217 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Horizontal, Axial |
| Size / Dimension Diameter | 0.453 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 3.6 VDC |
