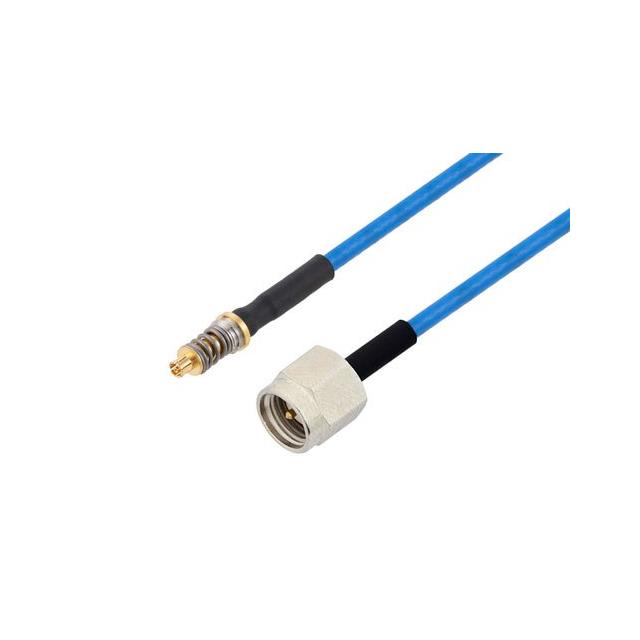

PE3C9736-12

PE3C9736-12

Active
Pasternack

MINI SMP FEMALE TO SMA MALE VITA

Find alt
PE3C9736-12

PE3C9736-12

Active
Pasternack

MINI SMP FEMALE TO SMA MALE VITA

Find alt

Description

General part information

PE3C9736-12

Cable Assembly Coaxial SMA to SMB Mini 12.00" (304.80mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationPE3C9736-12
1st ConnectorSMA Plug
1st Connector Mounting TypeFree Hanging (In-Line)
1st Contact GenderMale
2nd ConnectorSMB Mini Jack
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Contact GenderFemale
Cable Impedance50 Ohms
Connector Impedance50 Ohms
Frequency - Max18 GHz
Length12 in
Overall Impedance50 Ohms
StyleSMB Mini, SMA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
