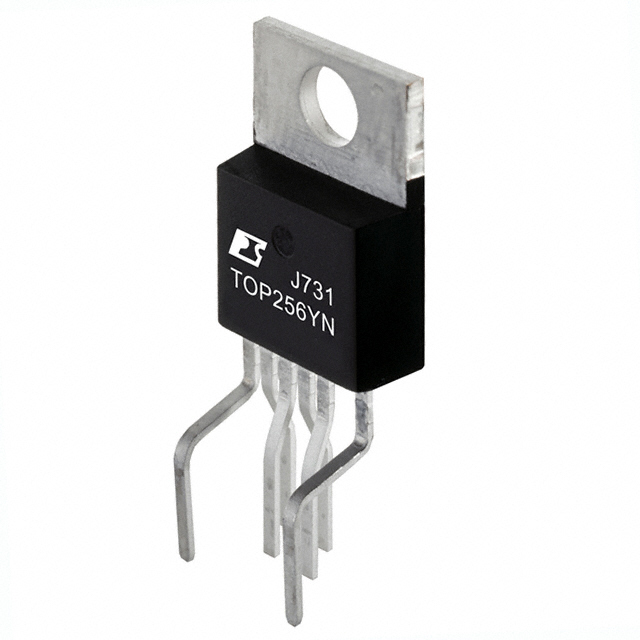

TOP256YN
ActivePower Integrations
IC OFFLINE SW FLYBACK TO220-7C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TOP256YN
ActivePower Integrations
IC OFFLINE SW FLYBACK TO220-7C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TOP256YN |
|---|---|
| Duty Cycle | 78 % |
| Fault Protection | Over Temperature, Current Limiting, Over Voltage |
| Frequency - Switching | 66 kHz, 132 kHz |
| Internal Switch(s) | True |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Isolation | Isolated |
| Package / Case | TO-220-7 Formed Leads, 6 Leads |
| Power (Watts) | 119 W |
| Supplier Device Package | TO-220-7C |
| Topology | Flyback |
| Voltage - Breakdown | 700 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.40 | |
| 100 | $ 1.98 | |||
| 1000 | $ 1.68 | |||
Description
General part information
TOP256YN
Converter Offline Flyback Topology 66kHz, 132kHz TO-220-7C
