PA4302.473NLT
ActivePulse Electronics
FIXED IND 47UH 1.45A 185MOHM SMD
PA4302.473NLT
ActivePulse Electronics
FIXED IND 47UH 1.45A 185MOHM SMD
Description
General part information
PA4302.473NLT

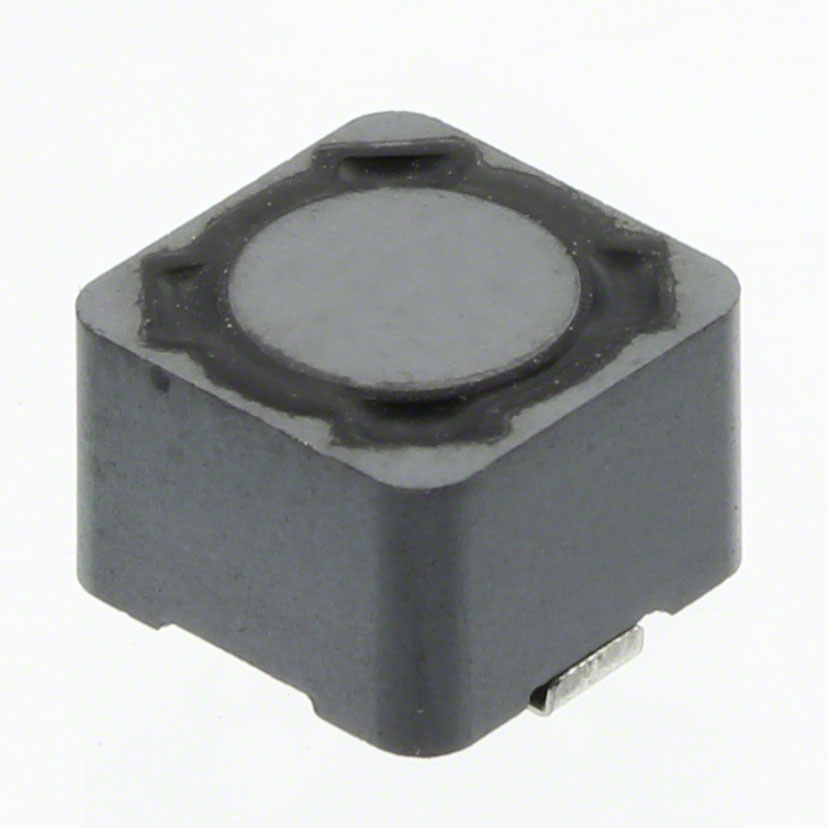

47 µH Shielded Drum Core, Wirewound Inductor 1.45 A 185mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4302.473NLT |
|---|---|
| Current Rating | 1.45 A |
| DC Resistance (DCR) (Max) | 185 mOhm |
| Height - Seated (Max) | 0.22 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.295 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
