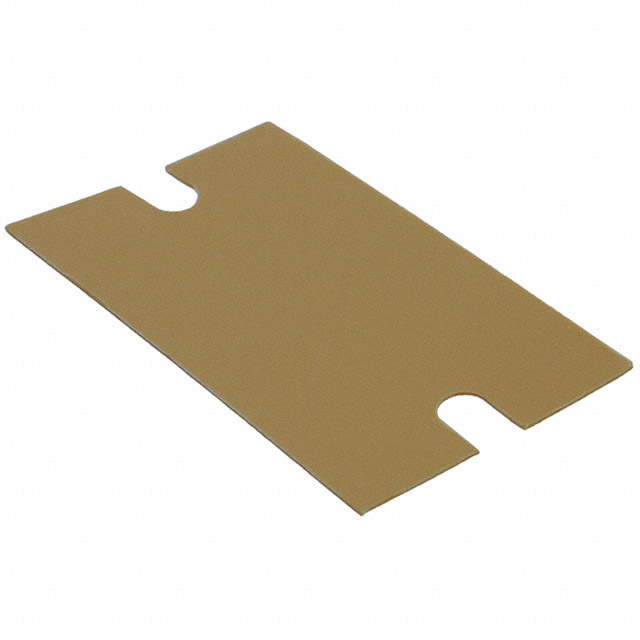

DC0022/02-TG-A373F-0.25-2A

Active

t-Global Technology

THERM PAD 38.1X22.86MM W/ADH YLW

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 38.1X22.86MM W/ADH YLW

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 38.1X22.86MM W/ADH WHT

Part	Adhesive	Shelf Life	Type	Usage	Material	Shape	Thermal Conductivity	Color	Backing, Carrier	Outline [y]	Outline [x]	Thickness [x]	Thickness [x]	Shelf Life Start	Thickness	Thickness	Thickness [custom]	Thickness [custom]
t-Global Technology DC0022/02-TI900-0.12-2A	Adhesive - Both Sides	24 Months	Die-Cut Pad, Sheet	Power Module	Silicone	Rectangular	1.8 W/m-K	White	Viscose	22.86 mm	38.1 mm	0.005 in	0.127 mm
t-Global Technology DC0022/02-TG-A482K-0.1-0		24 Months	Die-Cut Pad, Sheet	Power Module	Silicone	Rectangular	2.3 W/m-K	Red		22.86 mm	38.1 mm			Date of Purchase	0.1 mm	0.0039 in
t-Global Technology DC0022/02-TG-A373F-0.25-2A	Adhesive - Both Sides	12 Months	Die-Cut Pad, Sheet	Power Module		Rectangular	1.4 W/m-K	Yellow		22.86 mm	38.1 mm						0.254 mm	0.01 in
t-Global Technology DC0022/02-TG-A486G-0.3-2A	Adhesive - Both Sides	12 Months	Die-Cut Pad, Sheet	Power Module		Rectangular	6 W/m-K	Gray		22.86 mm	38.1 mm			Date of Purchase			0.305 mm	0.012 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
