SML-LXL99MWC-TR/5

Active

Lumex Opto/Components Inc.

LED TITANBRITE WM WHT 2700K 2SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE WM WHT 2700K 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LXL99MWC-TR/5	SML-LXL99 Series

CCT (K)	2700 K	2700 - 6000 K
Color	White, Warm	Cool, White, Red, Blue, Warm
Current - Max [Max]	1.5 A	1.2 - 500 A
Current - Test	1.2 A	1.2 - 500 A
Flux @ 25°C, Current - Test	-	190 lm
Height - Seated (Max) [Max] [z]	0.265 in	0.265 - 0.266 in
Height - Seated (Max) [Max] [z]	6.73 mm	6.73 - 6.75 mm
Lumens/Watt @ Current - Test	41 lm/W	10 - 41 lm/W
Luminous Flux @ Current/Temperature	-	42 - 55 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad	2-SMD, Gull Wing Exposed Pad, 2-SMD, Gull Wing
Size / Dimension [x]	9 mm	9 mm
Size / Dimension [x]	0.354 "	0.354 "
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [y]	0.354 in	0.354 in
Supplier Device Package	-	SMD
Thermal Resistance of Package	-	12 °C/W
Viewing Angle	100 °	100 °
Voltage - Forward (Vf) (Typ)	4.5 V	2.7 - 4.5 V
Wavelength	-	465 - 635 nm

LED TITANBRITE CL WHT 6000K 2SMD

Part	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Current - Test	Viewing Angle	Flux @ 25°C, Current - Test	Mounting Type	Lumens/Watt @ Current - Test	CCT (K)	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Wavelength	Thermal Resistance of Package [custom]	Supplier Device Package	Luminous Flux @ Current/Temperature
Lumex Opto/Components Inc. SML-LXL99UWC-TR/5	4.5 V	0.265 in	6.73 mm	Cool, White	1.2 A	100 °	190 lm	Surface Mount	35 lm/W	6000 K	2-SMD, Gull Wing Exposed Pad	9 mm	9 mm	0.354 "	0.354 in	1.5 A
Lumex Opto/Components Inc. SML-LXL99SIC-TR/2	2.7 V	0.266 in	6.75 mm	Red	500 mA	100 °		Surface Mount	31 lm/W		2-SMD, Gull Wing Exposed Pad	9 mm	9 mm	0.354 "	0.354 in	500 mA	635 nm	12 °C/W	SMD	42 lm
Lumex Opto/Components Inc. SML-LXL99USBC-TR/5	4.5 V	0.266 in	6.75 mm	Blue	1.2 A	100 °		Surface Mount	10 lm/W		2-SMD, Gull Wing	9 mm	9 mm	0.354 "	0.354 in	1.2 A	465 nm		SMD	55 lm
Lumex Opto/Components Inc. SML-LXL99MWC-TR/5	4.5 V	0.265 in	6.73 mm	Warm, White	1.2 A	100 °		Surface Mount	41 lm/W	2700 K	2-SMD, Gull Wing Exposed Pad	9 mm	9 mm	0.354 "	0.354 in	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

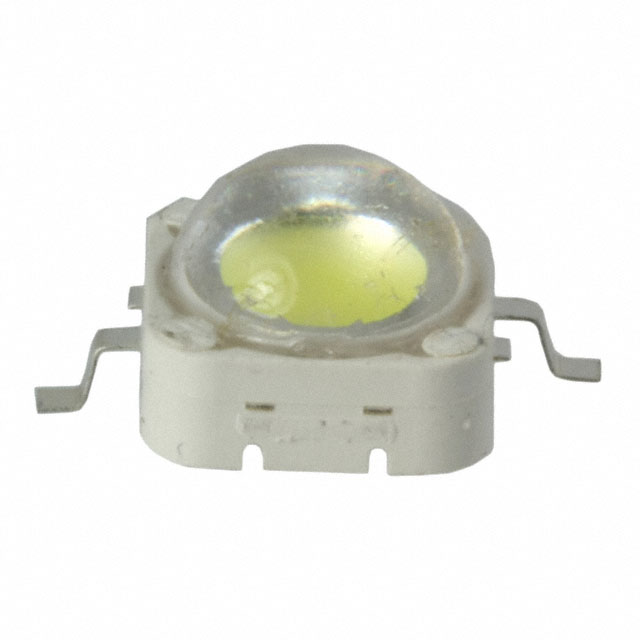

LED Lighting TitanBrite™ White, Warm 2700K 4.5V 1.2A 100° 2-SMD, Gull Wing Exposed Pad
