AS1371-BTDT-105

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.05V 400MA 6-TDFN

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.05V 400MA 6-TDFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS1371-BTDT-105	AS1371 Series

Control Features	Enable, Power Good	Enable, Power Good
Current - Output	400 mA	400 mA
Current - Quiescent (Iq)	20 çA	20 çA
Current - Supply (Max)	-	50 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Output Type	-	Adjustable

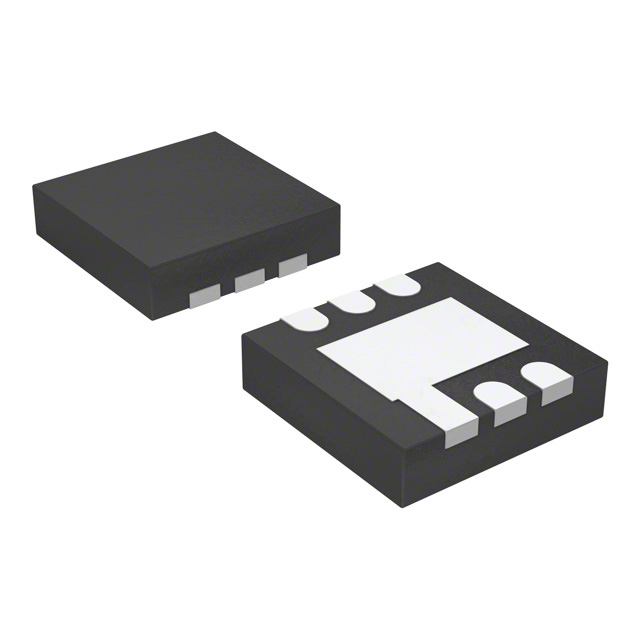

Package / Case	6-UFDFN Exposed Pad	6-UFDFN Exposed Pad
Protection Features	Under Voltage Lockout (UVLO), Over Temperature, Over Current	Under Voltage Lockout (UVLO), Over Temperature, Over Current
PSRR	50 dB	50 dB
Supplier Device Package	6-TDFN (2x2)	6-TDFN (2x2)
Voltage - Input (Max) [Max]	3.6 V	3.6 V
Voltage - Output (Max)	-	3.3 V
Voltage - Output (Min/Fixed)	1.05 V	0.6 - 1.05 V
Voltage Dropout (Max)	-	0.08 V

IC REG LIN POS ADJ 400MA 6-TDFN

Part	Voltage - Output (Min/Fixed)	Protection Features	Control Features	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Output Configuration	Voltage - Output (Max) [Max]	Mounting Type	Current - Output	Package / Case	Current - Supply (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Number of Regulators	Voltage - Input (Max) [Max]	PSRR	Output Type
ams-OSRAM USA INC. AS1371-SAMPLE	0.6 V	Over Current, Over Temperature, Under Voltage Lockout (UVLO)	Enable	20 çA	0.08 V	Positive	3.3 V	Surface Mount	400 mA	6-UFDFN Exposed Pad	50 µA	6-TDFN (2x2)	85 °C	-40 °C	Adjustable	1	3.6 V	50 dB
ams-OSRAM USA INC. AS1371-BTDT-105	1.05 V	Over Current, Over Temperature, Under Voltage Lockout (UVLO)	Enable, Power Good	20 çA		Positive		Surface Mount	400 mA	6-UFDFN Exposed Pad		6-TDFN (2x2)	85 °C	-40 °C		1	3.6 V	50 dB	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 400mA 6-TDFN (2x2)
