PNC3/8 SL080

Active

ALPHA WIRE

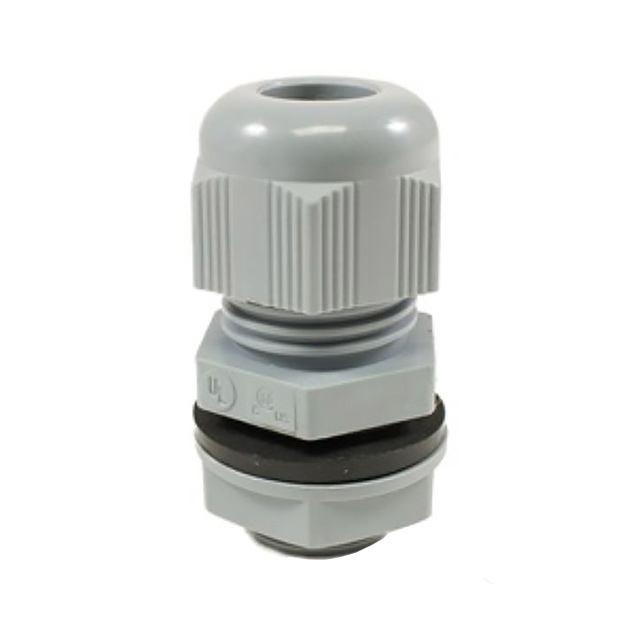

CABLE GLAND 5-10MM 3/8" NPT

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE GLAND 5-10MM 3/8" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	PNC3/8 SL080

Color	Gray
Includes	Locknut
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.675 in
Panel Hole Size	17.2 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/8" NPT
Type	Cable Gland

CABLE GLAND 5-10MM 3/8" NPT

Part	Includes	Thread Size	Thread Length	Thread Length	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Panel Hole Size	Panel Hole Size	Ingress Protection
ALPHA WIRE PNC3/8 SL080	Locknut	3/8" NPT	0.591 in	15 mm	Gray	0.394 "	10 mm	Cable Gland	Polyamide (PA), Nylon	100 °C	-20 C	5 mm	0.197 in	0.675 in	17.2 mm	IP66/IP68
