2903070

Active

Phoenix Contact

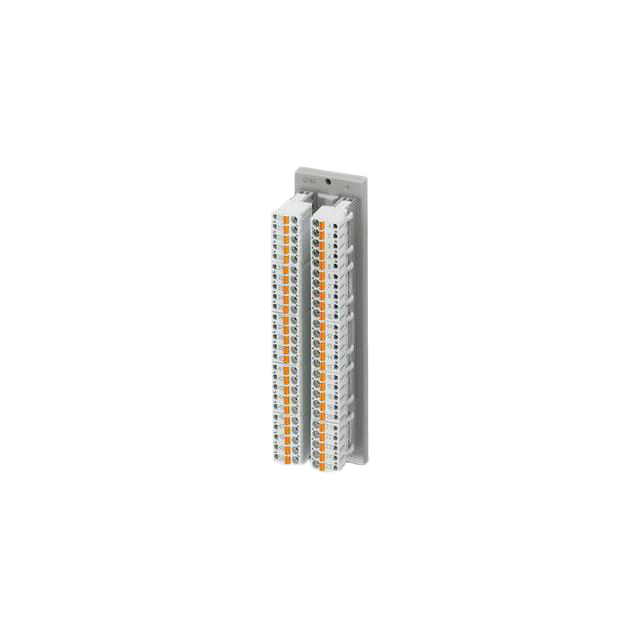

CONN MODULE DB50 FEEDTHROUGH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN MODULE DB50 FEEDTHROUGH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2903070	DFLK-D50 Series

Convert From (Adapter End)	Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows	Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows, Terminal Blocks, Screw Connection, 50 Pos, 2 Rows
Convert To (Adapter End)	2 Rows, 50 Pos	2 - 50 Rows
Convert To (Adapter End)	D-Sub, Female Sockets	D-Sub, Female Sockets, Male Pins
Mounting Type	Feed Through, Panel Mount	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG	24 - 30 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CONN MODULE DB50 FEEDTHROUGH

Part	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 2903070	2 Rows, 50 Pos	D-Sub, Female Sockets	Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows	Feed Through, Panel Mount	12 AWG	24 AWG
Phoenix Contact 2291286	2 Rows, 50 Pos	D-Sub, Male Pins	Terminal Blocks, Screw Connection, 50 Pos, 2 Rows	Feed Through, Panel Mount	12 AWG	30 AWG
Phoenix Contact 2287669	2 Rows, 50 Pos	D-Sub, Female Sockets	Terminal Blocks, Screw Connection, 50 Pos, 2 Rows	Feed Through, Panel Mount	12 AWG	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows To D-Sub, Female Sockets, 50 Pos, 2 Rows
