ISPLSI 2096VE-135LT128I
ActiveLattice Semiconductor Corporation

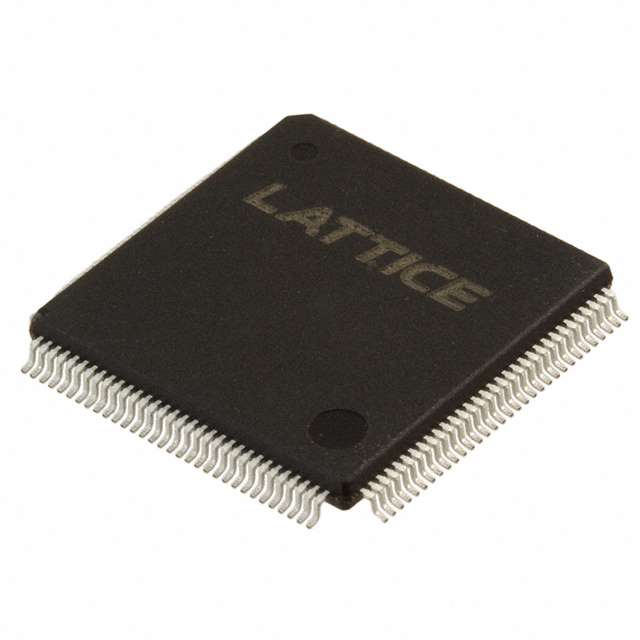

IC CPLD 96MC 7.5NS 128TQFP
Deep-Dive with AI
Search across all available documentation for this part.
ISPLSI 2096VE-135LT128I
ActiveLattice Semiconductor Corporation
IC CPLD 96MC 7.5NS 128TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ISPLSI 2096VE-135LT128I | ISPLSI 2096VE Series |
|---|---|---|
| Delay Time tpd(1) Max [Max] | 7.5 ns | 4 - 10 ns |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Gates | 4000 | 4000 |
| Number of I/O | 96 | 96 |
| Number of Logic Elements/Blocks | 24 | 24 |
| Number of Macrocells | 96 | 96 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 128-LQFP | 128-LQFP |
| Programmable Type | In System Programmable | In System Programmable |
| Voltage Supply - Internal [Max] | 3.6 V | 3.6 V |
| Voltage Supply - Internal [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ISPLSI 2096VE Series
IC CPLD 96MC 7.5NS 128TQFP
| Part | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Supply - Internal [Max] | Voltage Supply - Internal [Min] | Delay Time tpd(1) Max [Max] | Number of Macrocells | Mounting Type | Number of Gates | Programmable Type | Number of Logic Elements/Blocks | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lattice Semiconductor Corporation ISPLSI 2096VE-135LTN128I | 96 | 85 °C | -40 °C | 3.6 V | 3 V | 7.5 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Lattice Semiconductor Corporation ISPLSI 2096VE-200LT128 | 96 | 70 °C | 0 °C | 3.6 V | 3 V | 4.5 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Lattice Semiconductor Corporation ISPLSI 2096VE-250LTN128 | 96 | 70 °C | 0 °C | 3.6 V | 3 V | 4 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Lattice Semiconductor Corporation ISPLSI 2096VE-135LT128I | 96 | 85 °C | -40 °C | 3.6 V | 3 V | 7.5 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Lattice Semiconductor Corporation ISPLSI 2096VE-100LT128 | 96 | 70 °C | 0 °C | 3.6 V | 3 V | 10 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Lattice Semiconductor Corporation ISPLSI 2096VE-135LTN128 | 96 | 70 °C | 0 °C | 3.6 V | 3 V | 7.5 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Lattice Semiconductor Corporation ISPLSI 2096VE-135LT128 | 96 | 70 °C | 0 °C | 3.6 V | 3 V | 7.5 ns | 96 | Surface Mount | 4000 | In System Programmable | 24 | 128-LQFP |
Description
General part information
ISPLSI 2096VE Series
IC CPLD 96MC 7.5NS 128TQFP
Documents
Technical documentation and resources
