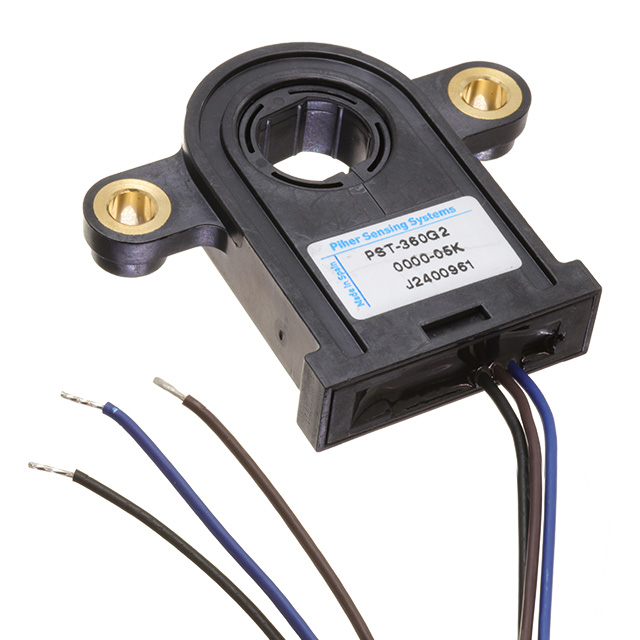

PST360G2-1A-C0011-ERA090-05K

Active

Amphenol Piher Sensing Systems

SENSOR ANGLE 90DEG WIRE LEADS

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

SENSOR ANGLE 90DEG WIRE LEADS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PST360G2-1A-C0011-ERA090-05K	PST360G2 Series

Actuator Type	Hole for Shaft	Hole for Shaft
For Measuring	Linear, Rotary, Angle	Linear, Rotary, Angle
Linearity	1 %	1 %
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Analog Voltage	Analog Voltage
Output Signal	Clockwise Increase	Clockwise Increase
Package / Case	Box with Wire Leads	Box with Wire Leads
Rotation Angle - Electrical, Mechanical [Max]	90 °	90 - 360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °	0 °
Technology	Hall Effect	Hall Effect
Termination Style	Wire Leads	Wire Leads
Voltage - Supply [Max]	5.5 V	5.5 - 15 V
Voltage - Supply [Min]	4.5 V	4.5 - 7 V

SENSOR ANGLE 90DEG WIRE LEADS

Part	For Measuring	Rotation Angle - Electrical, Mechanical [Max]	Termination Style	Output Signal	Output	Linearity	Package / Case	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]
Amphenol Piher Sensing Systems PST360G2-1A-C0011-ERA090-05K	Angle, Linear, Rotary	90 °	Wire Leads	Clockwise Increase	Analog Voltage	1 %	Box with Wire Leads	Chassis Mount	Hole for Shaft	125 °C	-40 °C	Hall Effect	4.5 V	5.5 V
Amphenol Piher Sensing Systems PST360G2-1A-C0000-ERA360-RE	Angle, Linear, Rotary	360 °	Wire Leads	Clockwise Increase	Analog Voltage	1 %	Box with Wire Leads	Chassis Mount	Hole for Shaft	125 °C	-40 °C	Hall Effect	7 V	15 V
Amphenol Piher Sensing Systems PST360G2-2AA-C0002-ERA360-05K	Angle, Linear, Rotary	360 °	Wire Leads	Clockwise Increase	Analog Voltage	1 %	Box with Wire Leads	Chassis Mount	Hole for Shaft	125 °C	-40 °C	Hall Effect	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle, Linear, Rotary Hole for Shaft Wire Leads
