Description
General part information
862-8604

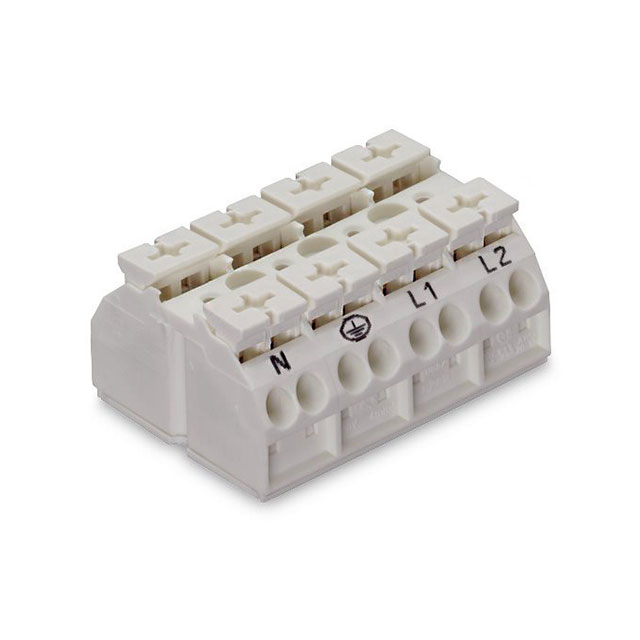

4 Position Terminal Block Push In Clamp - Wire Entry 90° to Panel White
Technical Specifications
Parameters and characteristics for this part
| Specification | 862-8604 |
|---|---|
| Color | White |
| Features | Push Button Actuated |
| Front Panel Wire Connection (Method) | Push In Clamp |
| Number of Levels | 1 |
| Panel Mount Type | Panel, Chassis |
| Pitch | 0.472 in |
| Positions Per Level | 4 |
| Rear Panel Wire Connection | Push In Clamp |
| Rear Panel Wire Connection (Wire Entry) Angle | 90 ° |
| Width | 1.89 in |
| Wire Entry Angle (to Panel) | 90 ° |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
