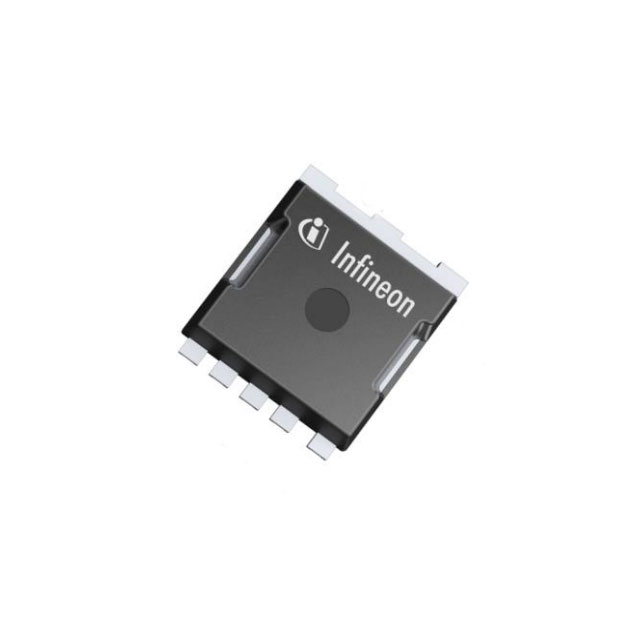

IST006N04NM6AUMA1

Active

Infineon Technologies

OPTIMOS™ 6 N-CHANNEL POWER MOSFET 40 V ; STOLL HSOF-5 PACKAGE; 0.6 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IST006N04NM6AUMA1

Active

Infineon Technologies

OPTIMOS™ 6 N-CHANNEL POWER MOSFET 40 V ; STOLL HSOF-5 PACKAGE; 0.6 MOHM;

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IST006N04NM6AUMA1

Current - Continuous Drain (Id) @ 25°C	475 A, 58 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	178 nC
Input Capacitance (Ciss) (Max) @ Vds	8800 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	5-PowerSFN
Power Dissipation (Max)	250 W, 3.8 W
Rds On (Max) @ Id, Vgs	0.6 mOhm
Supplier Device Package	PG-HSOF-5-4
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.3 V

IST006 Series

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Supplier Device Package	Power Dissipation (Max)	Technology	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Vgs (Max)	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	FET Type
Infineon Technologies IST006N04NM6AUMA1	178 nC	5-PowerSFN	PG-HSOF-5-4	3.8 W 250 W	MOSFET (Metal Oxide)	Surface Mount	6 V 10 V	-55 °C	175 ░C	3.3 V	20 V	0.6 mOhm	40 V	58 A 475 A	8800 pF	N-Channel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.26
		10	$ 2.81
		100	$ 1.99
		500	$ 1.63
		1000	$ 1.52
	Digi-Reel®	1	$ 4.26
		10	$ 2.81
		100	$ 1.99
		500	$ 1.63
		1000	$ 1.52
	Tape & Reel (TR)	2000	$ 1.52
Newark	Each (Supplied on Cut Tape)	1	$ 3.31
		10	$ 2.49
		25	$ 2.26
		50	$ 2.03
		100	$ 1.80
		250	$ 1.67
		500	$ 1.55
		1000	$ 1.48

Description

General part information

IST006 Series

TheOptiMOS™ 6 power MOSFET40V insTOLLpackage features very low RDS(on)of 0.60mOhm and 475A high current capability. It has the advantages of Infineon’s well-known quality level for robust industry packages making it the ideal solution for various performance in battery powered applications, battery protection and battery formation. The improved RDS(on)and IDratings, continuous and pulsed, enable increased battery run time and higher power density.
