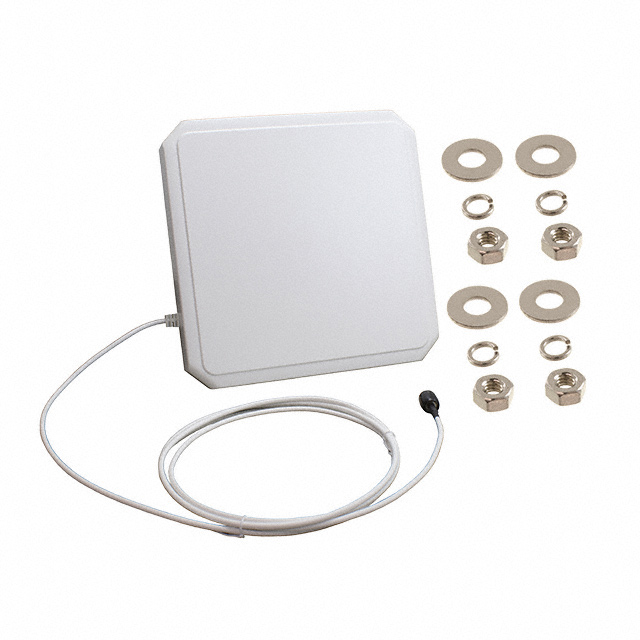

S9028PCR96RTN
ActiveTE Connectivity Raychem Cable Protection
902-928MHZ 9DBI RH RP-TNC-M-M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S9028PCR96RTN
ActiveTE Connectivity Raychem Cable Protection
902-928MHZ 9DBI RH RP-TNC-M-M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S9028PCR96RTN |
|---|---|
| Antenna Type | Panel |
| Applications | General Purpose |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz |
| Frequency Range [Min] | 902 MHz |
| Gain | 9 dBi |
| Height (Max) | 1.32 in |
| Height (Max) | 33.53 mm |
| Ingress Protection | IP54 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Termination | TNC Male |
| VSWR | 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 173.95 | |
| 10 | $ 108.72 | |||
Description
General part information
S9028 Series
RF ANTENNA General Purpose Panel TNC Male Bracket Mount
