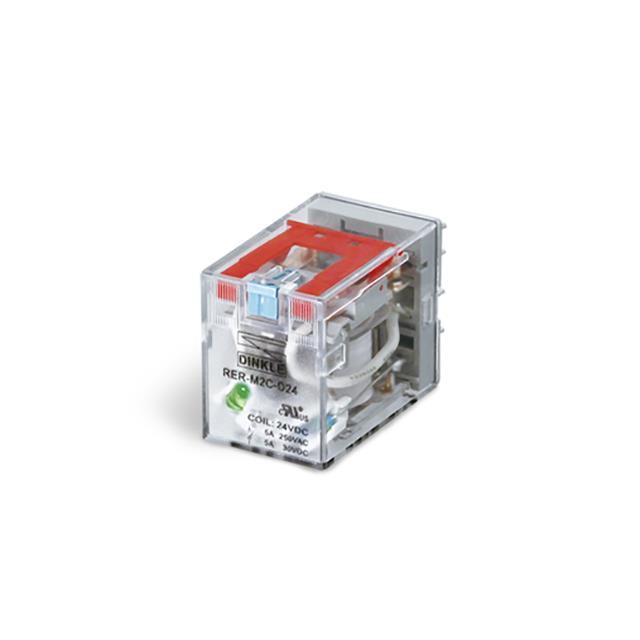

RER-M2C-A120

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 5A 120V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 5A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 5A 230V

Part	Coil Voltage	Contact Material	Must Release Voltage	Relay Type	Must Operate Voltage	Contact Rating (Current)	Switching Voltage [Max]	Contact Form	Operate Time	Features	Coil Type	Coil Resistance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Release Time
Dinkle Corporation, USA RER-M2C-A230	230 VAC	Silver Nickel (AgNi)	69 VAC	General Purpose	184 VAC	5 A	30 VDC, 250 VAC	DPDT (2 Form C)	20 ms	Lighted Indicator	Non Latching	4.43 kOhms	Socketable	70 °C	-55 °C	5.5 mA	20 ms
Dinkle Corporation, USA RER-M2C-D24	24 VDC	Silver Nickel (AgNi)	2.4 VDC	General Purpose	18 VDC	5 A	30 VDC, 250 VAC	DPDT (2 Form C)	20 ms	Lighted Indicator	Non Latching	640 Ohms	Socketable	70 °C	-55 °C	36.9 mA	20 ms
Dinkle Corporation, USA RER-M2C-A120	120 VAC	Silver Nickel (AgNi)	36 VAC	General Purpose	96 VAC	5 A	30 VDC, 250 VAC	DPDT (2 Form C)	20 ms	Lighted Indicator	Non Latching	4.43 kOhms	Socketable	70 °C	-55 °C	9.2 mA	20 ms
