SBR12E45LH1-13

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBR12E45LH1-13

Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	300 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	PowerDI™ 5SP
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	PowerDI5SP™
Technology	Super Barrier
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	520 mV

SBR12U45LH1 Series

NRND = Not Recommended for New Design

Part	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If [Max]
Diodes Inc SBR12U100P5-13	200 mA 500 ns	710 mV	150 °C	-65 C	Super Barrier	Surface Mount	250 µA	PowerDI™ 5	12 A	100 V	PowerDI™ 5
Diodes Inc SBR12E45LH1-13	200 mA	520 mV	150 °C	-65 C	Super Barrier	Surface Mount	300 µA	PowerDI5SP™	12 A	45 V	PowerDI™ 5SP	Standard Recovery >500ns
Diodes Inc SBR12U120P5-13	200 mA 500 ns	800 mV	150 °C	-65 C	Super Barrier	Surface Mount	250 µA	PowerDI™ 5	12 A	120 V	PowerDI™ 5
Diodes Inc SBR12U45LH1-13R	200 mA		150 °C	-65 C	Super Barrier	Surface Mount	300 µA	PowerDI5SP™	12 A	45 V	PowerDI™ 5SP	Standard Recovery >500ns	500 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SBR12U45LH1 Series

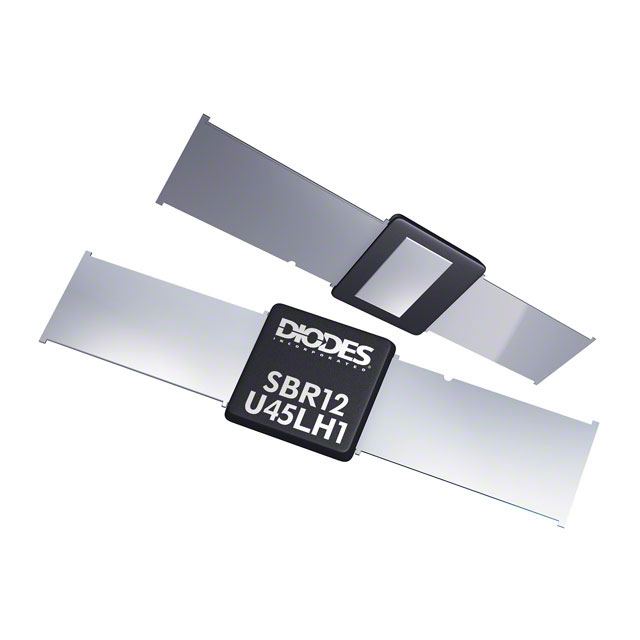

The SBR12U45LH1 uses SBR patented technology that offers ultralow VFto reduce forward power loss and improve efficiency. Encapsulated in the new PDI-5SP package with a 0.75mm low height profile and protruding leads for easy soldering, it is especially suited for use as a bypass diode in solar panels.

Documents

Technical documentation and resources

Recommended Soldering Techniques

Technical Document
