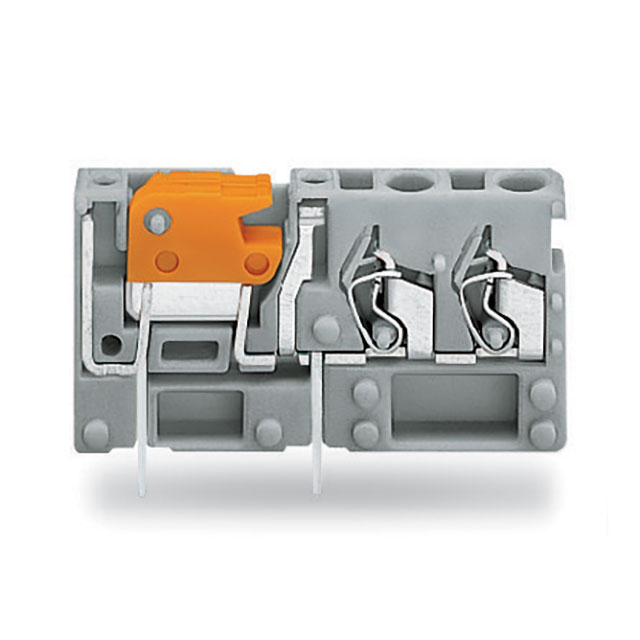

STACKABLE 2-CONDUCTOR PCB TERMINAL BLOCK
742-151
ActiveWAGO Corporation
STACKABLE 2-CONDUCTOR PCB TERMINAL BLOCK
Description
General part information
742-151
1 Position Wire to Board Terminal Block Vertical with Board Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 742-151 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Current | 10 A |
| Features | Knife Disconnect |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Plating | Tin Plated |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
