LSR2-08F04-4080-00

Active

New Energy

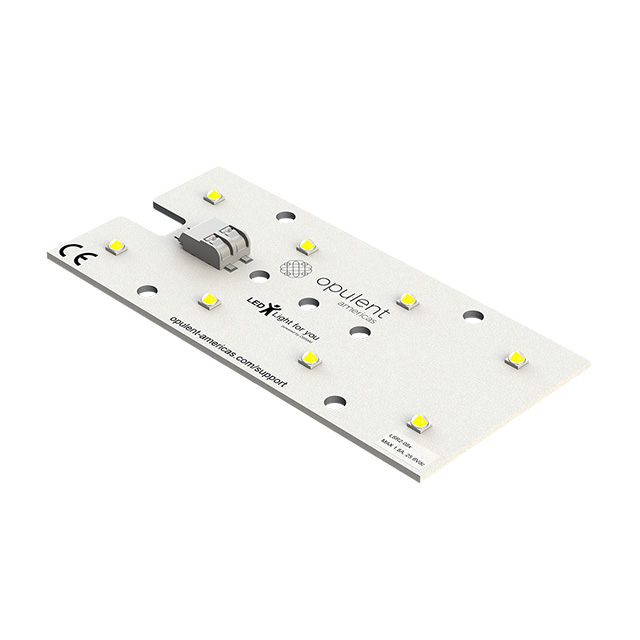

LED MOD OSLON WHT RECT 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD OSLON WHT RECT 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSR2-08F04-4080-00	LSR2-08 Series

CCT (K)	4000 K	2700 - 5000 K
Color	Neutral, White	Neutral, White, Warm, Cool
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	1.8 A	1.8 A
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	130 lm/W	104 - 160 lm/W
Luminous Flux @ Current/Temperature	2040 lm	1880 - 2520 lm
Size / Dimension [x]	59.59 mm	59.59 mm
Size / Dimension [y]	45.01 mm	45.01 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	22.4 V	22.4 V

LED MOD OSLON WHT RECT 4000K

Part	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Type	CCT (K)	Luminous Flux @ Current/Temperature	Color	Temperature - Test	Current - Max [Max]	Lens Type	Configuration
New Energy LSR2-08F04-4080-00	45.01 mm	59.59 mm	80	130 lm/W	22.4 V	LED Module	4000 K	2040 lm	Neutral, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-2790-00	45.01 mm	59.59 mm	90	104 lm/W	22.4 V	LED Module	2700 K		Warm, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-4070-00	45.01 mm	59.59 mm	70	160 lm/W	22.4 V	LED Module	4000 K	2520 lm	Neutral, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-3070-00	45.01 mm	59.59 mm	70	155 lm/W	22.4 V	LED Module		2440 lm	Warm, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-3080-00	45.01 mm	59.59 mm	80	125 lm/W	22.4 V	LED Module		1950 lm	Warm, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-5080-00	45.01 mm	59.59 mm	80	135 lm/W	22.4 V	LED Module	5000 K	2120 lm	Cool, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-2780-00	45.01 mm	59.59 mm	80	120 lm/W	22.4 V	LED Module	2700 K	1880 lm	Warm, White	85 °C	1.8 A	Flat	Rectangle
New Energy LSR2-08F04-5070-00	45.01 mm	59.59 mm	70	160 lm/W	22.4 V	LED Module	5000 K	2520 lm	Cool, White	85 °C	1.8 A	Flat	Rectangle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	350	$ 18.07

General part information

LED Lighting COBs Engines Modules LED Module OSLON® Square White, Neutral Rectangle
