758-961
ActiveWAGO Corporation

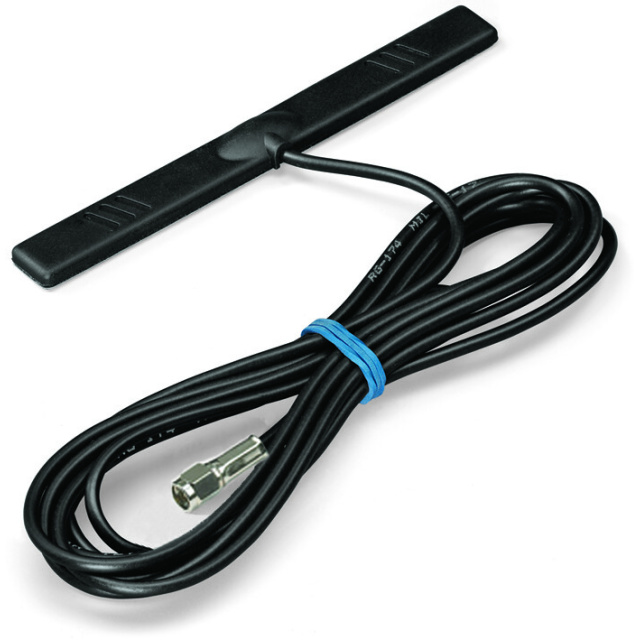

SELF-ADHESIVE ANTENNA; WITH 2.5M
758-961
ActiveWAGO Corporation
SELF-ADHESIVE ANTENNA; WITH 2.5M
Description
General part information
758-961
RF ANTENNA Bluetooth, GSM, LTE, UMTS, WLAN Flat Bar SMA Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 758-961 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | UMTS, GSM, Bluetooth, WLAN, LTE |
| Features | Cable, 2.5m |
| Frequency (Band) | 2.2 GHz |
| Frequency (Center) | 829.5 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 2 GHz, 300 MHz |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 699 MHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 2.15 dBi |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Cellular, Bluetooth |
| Termination | SMA |
