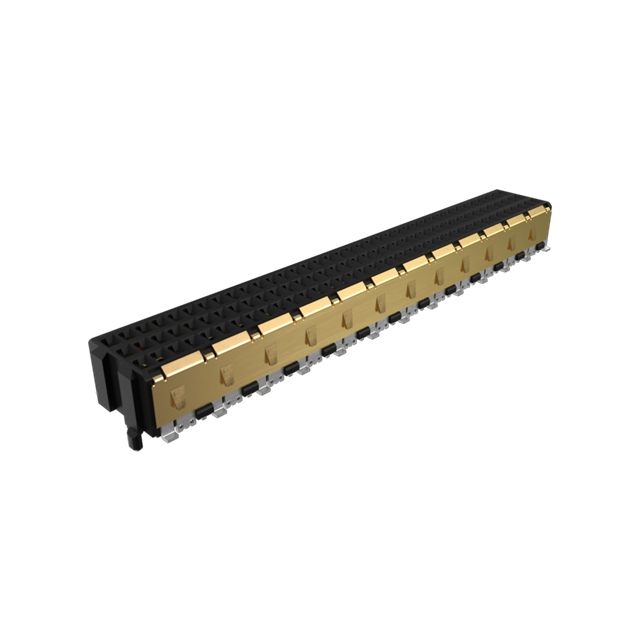

10160299-1111000LF
ActiveAmphenol ICC (FCI)
BERGSTAK SECURE CONNECTOR, VERTI
Deep-Dive with AI
Search across all available documentation for this part.
10160299-1111000LF
ActiveAmphenol ICC (FCI)
BERGSTAK SECURE CONNECTOR, VERTI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10160299-1111000LF |
|---|---|
| Connector Type | Female Sockets, Array |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Board Guide |
| Height Above Board | 4.4 mm |
| Height Above Board | 0.173 in |
| Mated Stacking Heights | 7.95 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 111 |
| Number of Rows | 3 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.41 | |
| 10 | $ 7.99 | |||
| 25 | $ 7.21 | |||
| 50 | $ 6.69 | |||
| 100 | $ 6.30 | |||
| 250 | $ 5.69 | |||
| Digi-Reel® | 1 | $ 10.41 | ||
| 10 | $ 7.99 | |||
| 25 | $ 7.21 | |||
| 50 | $ 6.69 | |||
| 100 | $ 6.30 | |||
| 250 | $ 5.69 | |||
| Tape & Reel (TR) | 800 | $ 5.04 | ||
| 1600 | $ 4.72 | |||
Description
General part information
10160299 Series
111 Position Connector Array, Female Sockets Surface Mount Gold or Gold, GXT™
