Description
General part information
S558-5500-72

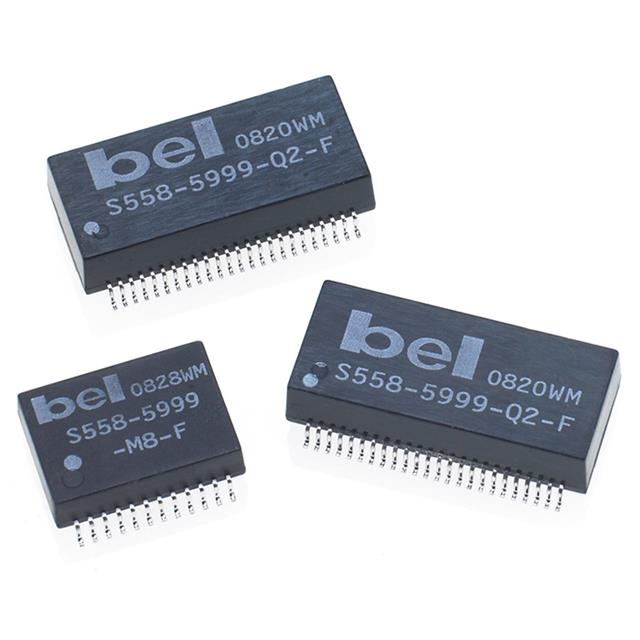

120µH, 350µH LAN 1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | S558-5500-72 |
|---|---|
| Height - Seated (Max) | 0.285 in |
| Inductance (Option 1) | 120 µH |
| Inductance (Option 2) | 350 µH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 1.095 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 1000 Base-T |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
