8282-6PG-3DC

Active

Conxall/Switchcraft

SBC 2.4GHZ 4 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Conxall/Switchcraft

SBC 2.4GHZ 4 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8282-6PG-3DC	8282-6PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

SBC 2.4GHZ 4 CORE 8GB/0GB RAM

Part	Color	Current Rating (Amps)	Primary Material	Features	Applications	Contact Material	Backshell Material, Plating	Shielding	Fastening Type	Orientation	Number of Positions	Connector Type	Voltage Rating	Ingress Protection	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8282-6PG-3DC	Black	Varies by Wire Gauge	Plastic	Backshell	Automotive, Communication Systems, Instrumentation	Brass	Nylon, Polyamide (PA)	Unshielded	Bayonet Lock	Keyed	6	Male Pins, Receptacle	600 V	Weathertight	Solder	Free Hanging (In-Line)	-40 °C	115 °C	Gold
Conxall/Switchcraft 8282-6PG-315	Black	Varies by Wire Gauge	Plastic	Backshell	Automotive, Communication Systems, Instrumentation	Brass	Nylon, Polyamide (PA)	Unshielded	Bayonet Lock	Keyed	6	Male Pins, Receptacle	600 V	Weathertight		Free Hanging (In-Line)	-40 °C	115 °C	Gold	0.15 in, 0.17 in	3.81 mm, 4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

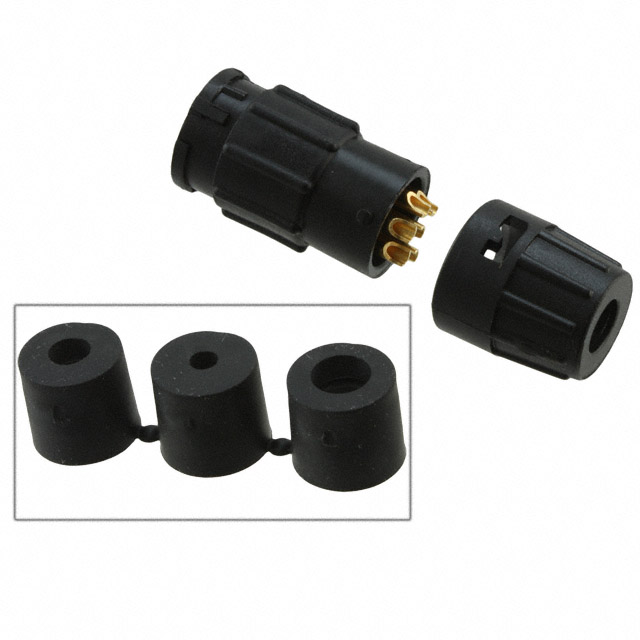

6 Position Circular Connector Receptacle, Male Pins Solder
