01344.41.01

Active

Prysmian Group

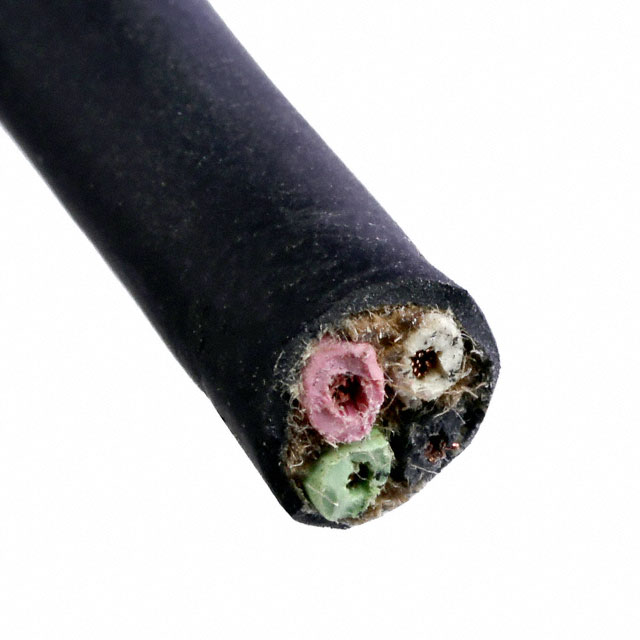

CABLE 4COND 18AWG BLACK 1000'

Deep-Dive with AI

Search across all available documentation for this part.

01344.41.01

Active

Prysmian Group

CABLE 4COND 18AWG BLACK 1000'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01344.41.01	01344 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Bare, Copper, Annealed Bare
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.33 in	0.33 in
Jacket (Insulation) Diameter [diameter]	8.38 mm	8.38 mm
Jacket (Insulation) Material	Carolprene	Carolprene
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Black	Black
Length	1000 ft	1000 - 3000 ft
Length	304.8 m	76.2 - 762 m
Length	-	500 '
Length	-	152.4 m
Number of Conductors	4	4
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Voltage	300 V	300 V
Wire Gauge	18 AWG	18 AWG

01344 Series

CABLE 4COND 18AWG BLACK 1000'

Part	Conductor Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Number of Conductors	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Prysmian Group 01344.41.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	1000 ft	304.8 m	90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.38T.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)			90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm	500 '	152.4 m
Prysmian Group 01344.35T.01	Copper, Annealed Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	3000 "	76.2 m	90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.46.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)			90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.15.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	3000 "	76.2 m	90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.44.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	2500 ft	762 m	90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.35.01	Copper, Annealed Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	3000 "	76.2 m	90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.41T.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	1000 ft	304.8 m	90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm
Prysmian Group 01344.99.01	Copper, Bare	18 AWG	16	30 AWG	Carolprene	4	Multi-Conductor	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)			90 °C	-40 °C	300 V	Black	0.33 in	8.38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	32	$ 465.56

Description

General part information

01344 Series

4 Conductor Multi-Conductor Cable Black 18 AWG 1000.0' (304.8m)

Documents

Technical documentation and resources

No documents available
