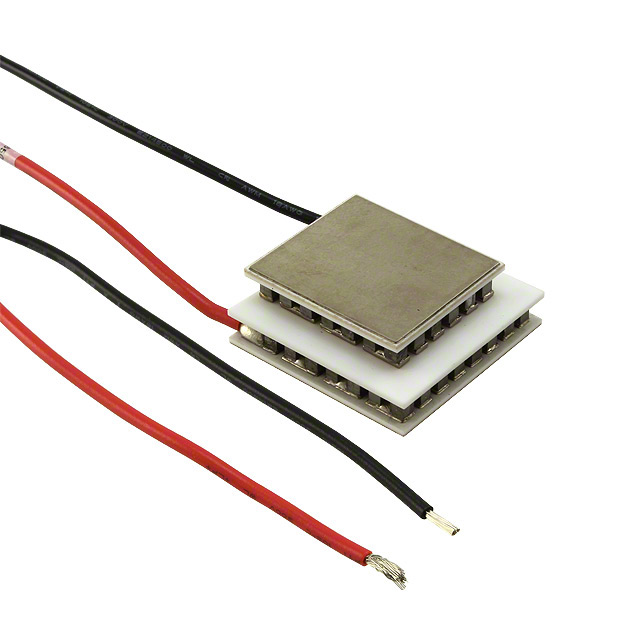

16503-304

Active

Laird Thermal Systems, Inc.

PELTIR MS2,051,22,22,25,25,00,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,051,22,22,25,25,00,W8

Technical Specifications

Parameters and characteristics commom to parts in this series

PELTIR MS2,051,22,22,25,25,00,W8

Part	Qmax @ Th	Features	Height [z]	Number of Stages	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Voltage - Max [Max]	Operating Temperature
Laird Thermal Systems, Inc. 16503-304	10.5 W	Lead Wires, Non-Sealed	10.92 mm	2	29.7 mm	29.7 mm	5.7 A	3.5 V	80 °C
Laird Thermal Systems, Inc. 16503-310	10.5 W	Lead Wires, Non-Sealed	10.72 mm	2	29.7 mm	29.7 mm	5.7 A	3.5 V	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 10.5W @ 25°C 5.7 A 80°C
