Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AEK-POW-BMS63EN | AEK-POW-BMS63EN Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Embedded | Yes, MCU | Yes, MCU |
| Function | Battery Monitor | Battery Monitor |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AEK-POW-BMS63EN Series
Battery management system module based on L9963E
| Part | Function | Utilized IC / Part | Contents | Embedded | Supplied Contents | Type |
|---|---|---|---|---|---|---|
STMicroelectronics AEK-POW-BMS63EN | Battery Monitor | Board(s) | Yes, MCU | Board(s) | Power Management | |
STMicroelectronics AEK-POW-BMS63EN | ||||||
STMicroelectronics AEK-POW-BMS63EN |
Description
General part information
AEK-POW-BMS63EN Series

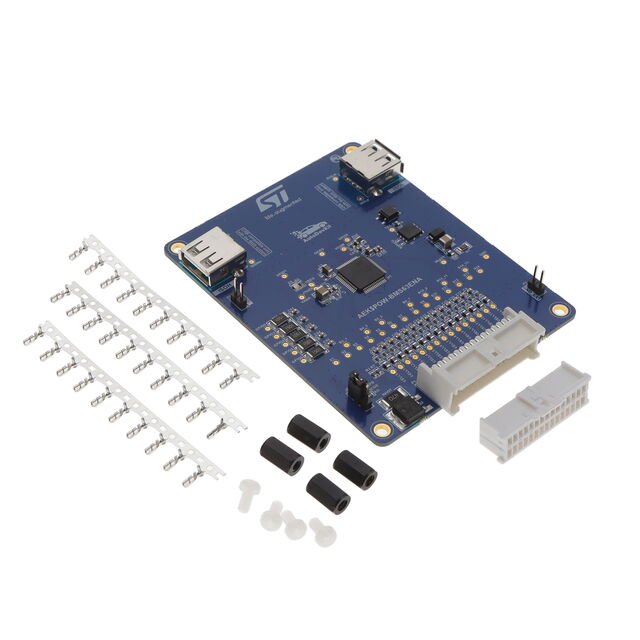

The AEK-POW-BMS63EN is a battery management system (BMS) evaluation board that can handle from 1 to 31 Li-ion battery nodes. Each battery node manages from 4 to 14 battery cells, for a voltage range between 48 V and 800 V.
The board is based on the L9963E, which is designed for operation in both hybrid (HE) and full electric (BE) vehicles using lithium battery packs, but its use can be extended to other Transportation and Industrial applications.
The main activity of the L9963E is monitoring cells and battery node status through stack voltage measurement, cell voltage measurement, temperature measurement, and coulomb counting. Measurement and diagnostic tasks can be executed either on demand or periodically, with a programmable cycle interval. Measurement data are available for an external microcontroller to perform charge balancing and to compute the state of charge (SOC) and the state of health (SOH).
