704.075.318
ActiveEAO

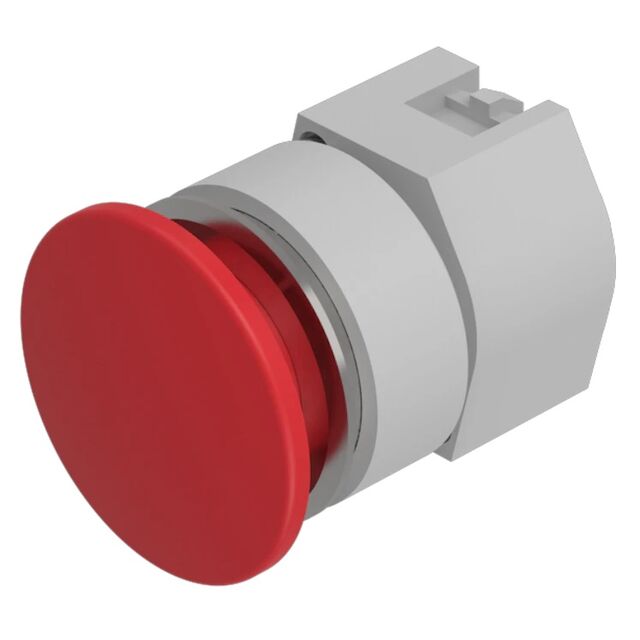

SWITCH STOP-ACTUATOR UNLOCKING TO TWIST RELEASE FOR FLUSH MOUNTING NATURE/RED D40, STOP ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
704.075.318
ActiveEAO
SWITCH STOP-ACTUATOR UNLOCKING TO TWIST RELEASE FOR FLUSH MOUNTING NATURE/RED D40, STOP ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.075.318 | 704.075 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | E-Stop, Round | E-Stop, Round |
| Illumination | Non-Illuminated | Non-Illuminated |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Contact Block(s) | Contact Block(s) |
| Type | Maintained | Maintained |
704.075 Series
SWITCH STOP-ACTUATOR UNLOCKING TO TWIST RELEASE FOR FLUSH MOUNTING NATURE/RED D40, STOP ROHS COMPLIANT: YES
| Part | Panel Cutout Dimensions | Illumination | (Select First, Then Apply Filters) Compatible Series | Requires | Type | Actuator Type |
|---|---|---|---|---|---|---|
EAO 704.075.318 | 30.5 mm | Non-Illuminated | 04, EAO | Contact Block(s) | Maintained | E-Stop, Round |
EAO 704.075.2 | 22.3 mm | Non-Illuminated | 04, EAO | Contact Block(s) | Maintained | E-Stop, Round |
EAO 704.075.218 | 30.5 mm | Non-Illuminated | 04, EAO | Contact Block(s) | Maintained | E-Stop, Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
704.075 Series
Configurable Switch Body E-Stop, Round Non-Illuminated
