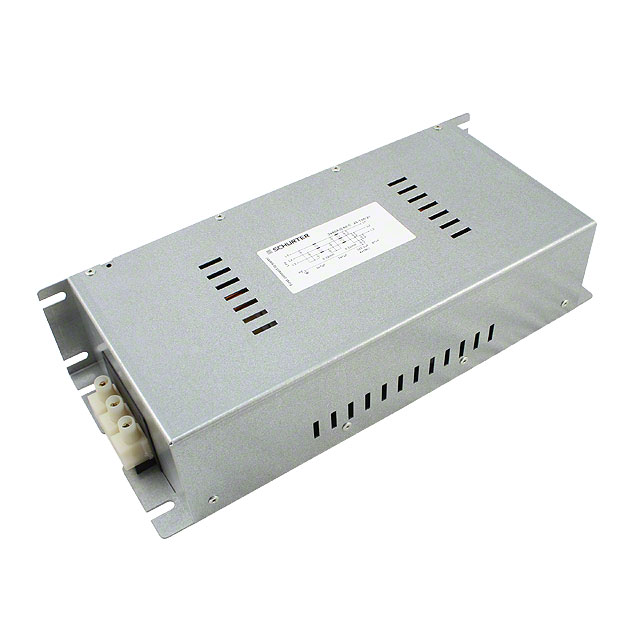

Specification	FMBC-0996-8000

Applications	Inverters, Power Drive Systems
Approval Agency	CE, UKCA, cURus, ENEC, VDE
Configuration	Two Stage
Current	80 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating	60Hz, 50Hz
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	50 Hz
Inductance	320 µH
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V

FMBC Series

Part	Approval Agency	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Filter Subtype	Filter Type	Frequency - Operating (Min)	Frequency - Operating	Frequency - Operating (Max)	Termination Style	Current	Configuration	Inductance L1	Inductance L2	Voltage - Rated AC	Voltage - Rated AC	Inductance
SCHURTER Inc. FMBC-A91G-J312	CE cURus ENEC UKCA VDE	General Purpose	-25 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	130 A	Two Stage	700 µH	26 µH	480V 520V
SCHURTER Inc. FMBC-345B-3614	cURus ENEC UL VDE	General Purpose	-40 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	25 A	Two Stage				760 V
SCHURTER Inc. FMBC-394D-J814	cURus ENEC UL VDE	General Purpose	-40 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	180 A	Two Stage				760 V
SCHURTER Inc. FMBC-0967-1010	cURus ENEC VDE	Inverters Power Drive Systems	-25 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	10 A	Two Stage	3 mH	1.5 mH		480 V
SCHURTER Inc. FMBC-A91V-J812	CE cURus ENEC UKCA VDE	General Purpose	-25 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	180 A	Two Stage	400 µH	31 µH	480V 520V
SCHURTER Inc. FMBC-345A-1612	cURus ENEC UL VDE	General Purpose	-40 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	16 A	Two Stage				520 V
SCHURTER Inc. FMBC-395B-6412	cURus ENEC UL VDE	General Purpose	-40 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	64 A	Two Stage				520 V
SCHURTER Inc. FMBC-395A-1612	cURus ENEC UL VDE	General Purpose	-40 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	16 A	Two Stage				520 V
SCHURTER Inc. FMBC-0932-2510L	CE cURus ENEC UKCA VDE	General Purpose	-25 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	25 A	Two Stage				480 V	2.4 mH
SCHURTER Inc. FMBC-394D-K314	cURus ENEC UL VDE	General Purpose	-40 °C	100 °C	Chassis Mount	Delta	Three Phase	50 Hz	50Hz 60Hz	60 Hz	Terminal Block	230 A	Two Stage				760 V
