1241.6632.1120000
ActiveSCHURTER Inc.

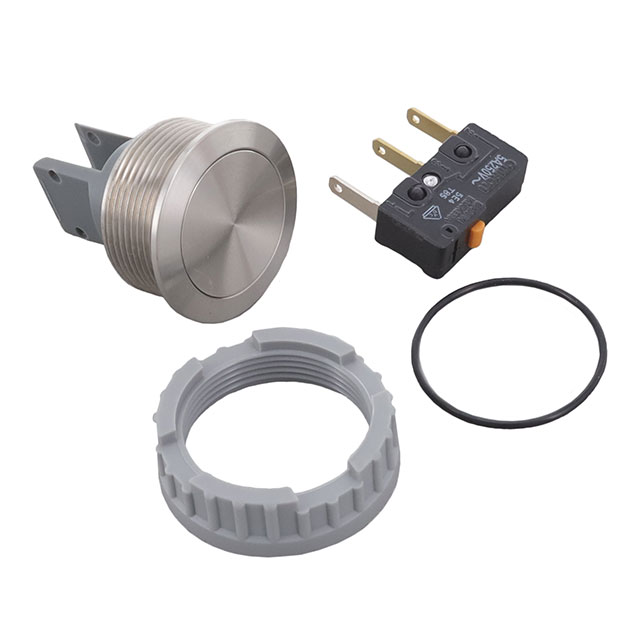

SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
1241.6632.1120000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6632.1120000 | 1241.6632 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Green, Silver, Red |
| Current Rating (Amps) | 5 A | 5 A |
| Electrical Life | 200000 Cycles | 50000 - 200000 Cycles |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.1 mm | 22.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal | Anti-Vandal |
| Voltage Rating - AC | 125 V | 125 - 250 V |
1241.6632 Series
SWITCH PUSHBUTTON SPDT 5A 250V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Color - Actuator/Cap | Circuit | Type | Panel Cutout Dimensions [diameter] | Actuator Marking | Termination Style | Mounting Type | Electrical Life | Voltage Rating - AC | Actuator Type | Ingress Protection | Mechanical Life | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6632.5120065 | -25 °C | 85 °C | 5 A | Green | SPDT | Anti-Vandal | 22.1 mm | No Marking | Quick Connect - 0.110" (2.8mm) | Panel Mount, Front | 50000 Cycles | 250 V | Button, Flush, Round | IP40 | 1500000 Cycles | On-Mom |
SCHURTER Inc. 1241.6632.5120061 | -25 °C | 85 °C | 5 A | Green | SPDT | Anti-Vandal | 22.1 mm | No Marking | Quick Connect - 0.110" (2.8mm) | Panel Mount, Front | 50000 Cycles | 250 V | Button, Flush, Round | IP40 | 1500000 Cycles | On-Mom |
SCHURTER Inc. 1241.6632.1120000 | -25 °C | 85 °C | 5 A | Silver | SPDT | Anti-Vandal | 22.1 mm | No Marking | Quick Connect - 0.110" (2.8mm) | Panel Mount, Front | 200000 Cycles | 125 V | Button, Flush, Round | IP40 | 1500000 Cycles | On-Mom |
SCHURTER Inc. 1241.6632.3120000 | -25 °C | 85 °C | 5 A | Red | SPDT | Anti-Vandal | 22.1 mm | No Marking | Quick Connect - 0.110" (2.8mm) | Panel Mount, Front | 50000 Cycles | 125 V | Button, Flush, Round | IP40 | 1500000 Cycles | On-Mom |
SCHURTER Inc. 1241.6632.5120000 | -25 °C | 85 °C | 5 A | Green | SPDT | Anti-Vandal | 22.1 mm | No Marking | Quick Connect - 0.110" (2.8mm) | Panel Mount, Front | 50000 Cycles | 125 V | Button, Flush, Round | IP40 | 1500000 Cycles | On-Mom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1241.6632 Series
Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
